Speaker-Right Rear

Component ID: 393

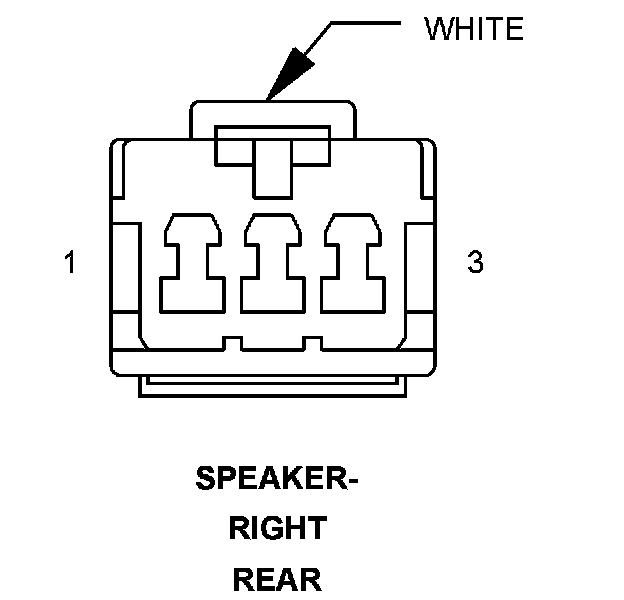

Component : SPEAKER-RIGHT REAR

Connector:
Name : SPEAKER-RIGHT REAR
Color : WHITE
# of pins : 3




Pin Description Circuit
1 RIGHT REAR SPEAKER (-) X394 18YL/GY
2 - -
3 RIGHT REAR SPEAKER (+) X304 18DG/BR

Component Location - 69
