Speaker-Right Front Door

Component ID: 392

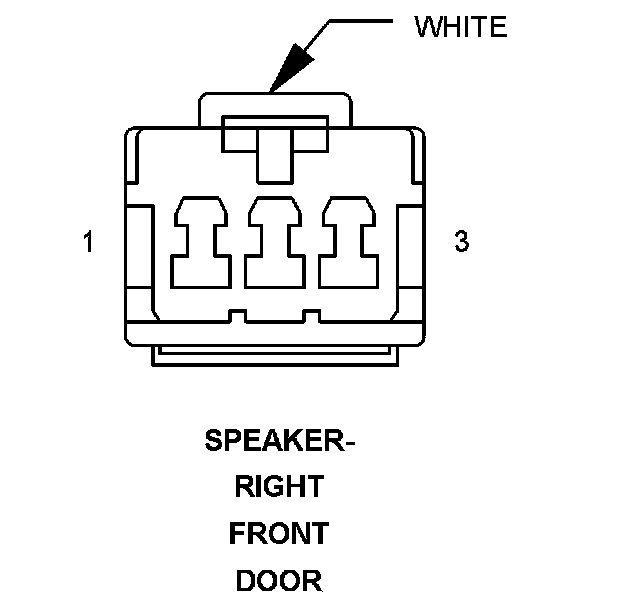

Component : SPEAKER-RIGHT FRONT DOOR

Connector:
Name : SPEAKER-RIGHT FRONT DOOR
Color : WHITE
# of pins : 3




Pin Description Circuit
1 RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
Pin Description Circuit
1 RIGHT FRONT SPEAKERS (-) X292 18DG/YL
2 - -
3 RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
3 RIGHT FRONT SPEAKERS (+) X202 18DG/VT

Component Location - 60
