Speaker-Instrument Panel-Right

Component ID: 389
Component : SPEAKER-INSTRUMENT PANEL-RIGHT

Connector:

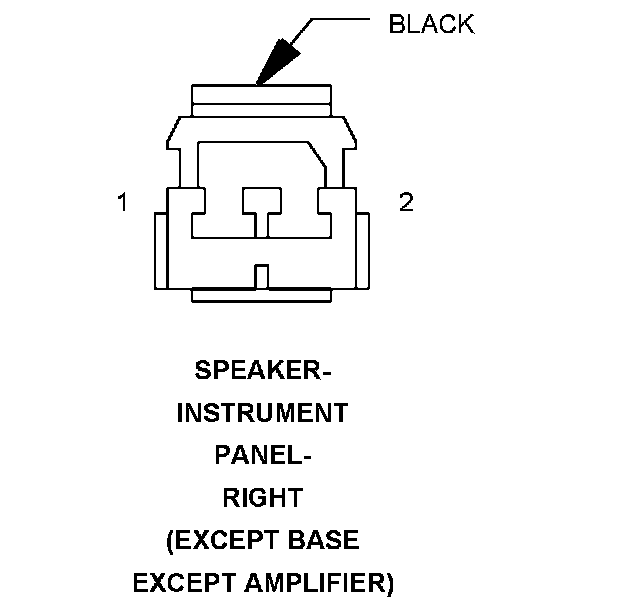

Name : SPEAKER-INSTRUMENT PANEL-RIGHT
Color : BLACK
# of pins : 2
Qualifier : (EXCEPT BASE EXCEPT AMPLIFIER)




Pin Description Circuit
1 RIGHT I/P SPEAKER (+) X208 18GY/DG
Pin Description Circuit
1 RIGHT FRONT SPEAKERS (+) X202 18DG/VT
2 RIGHT I/P SPEAKER (-) X298 18GY/LG
2 RIGHT FRONT SPEAKERS (-) X292 18GY/LG
