Sensor-Infrared

Component ID: 353
Component : SENSOR-INFRARED

Connector:
Name : SENSOR-INFRARED
Color : BLACK
# of pins : 4
Qualifier : (ATC)




Pin Description Circuit
1 IGNITION SWITCH OUTPUT (RUN-START) F202 20PK/GY
2 - -
3 IR SENSOR SIGNAL C83 20DB/LG
4 IR SENSOR RETURN C830 20DB/YL

Component Location - 41

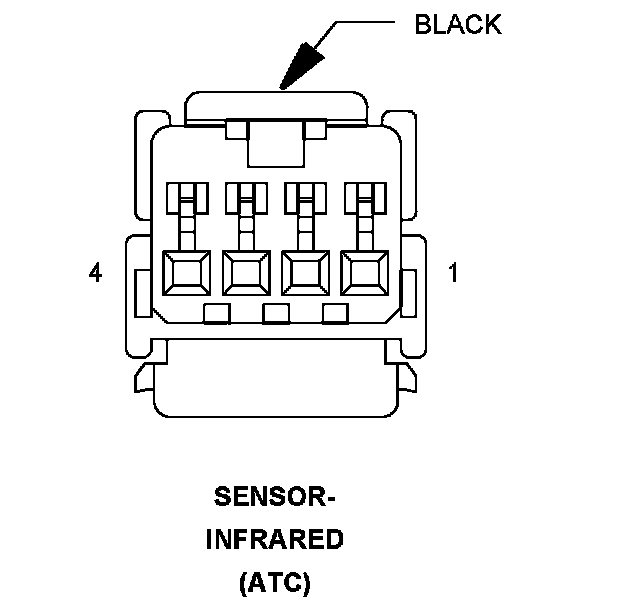

Fig. 41:
