Shifter A/T

Component ID: 19
Component : ASSEMBLY-SHIFT LEVER

Connector:

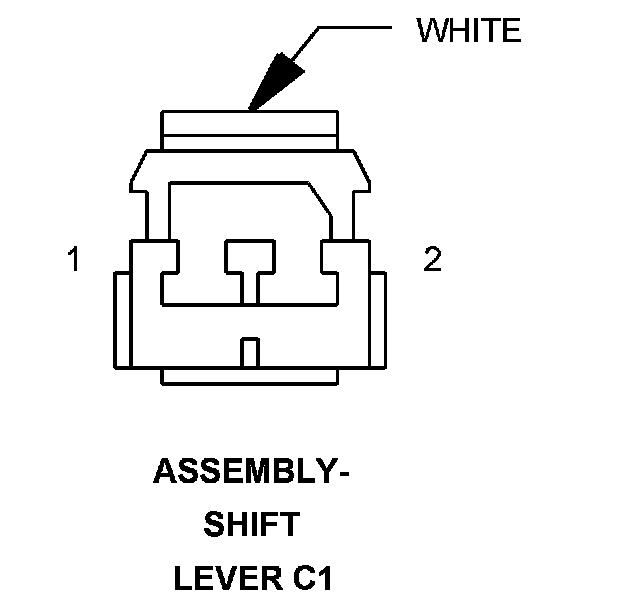

Name : ASSEMBLY-SHIFT LEVER C1
Color : WHITE
# of pins : 2




Pin Description Circuit
1 BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID UNLOCK K321 22BR/YL
2 GROUND Z907 20BK

Component Location - 51






Connector:
Name : ASSEMBLY-SHIFT LEVER C2
Color : BLACK
# of pins : 4
Qualifier : (AUTOSTICK)




Pin Description Circuit
1 - -
2 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
3 AUTOSTICK UPSHIFT SIGNAL T5 20DG/YL
4 GROUND Z907 20BK

Component Location - 51
