Heater-Seat Cushion-Right

Component ID: 131

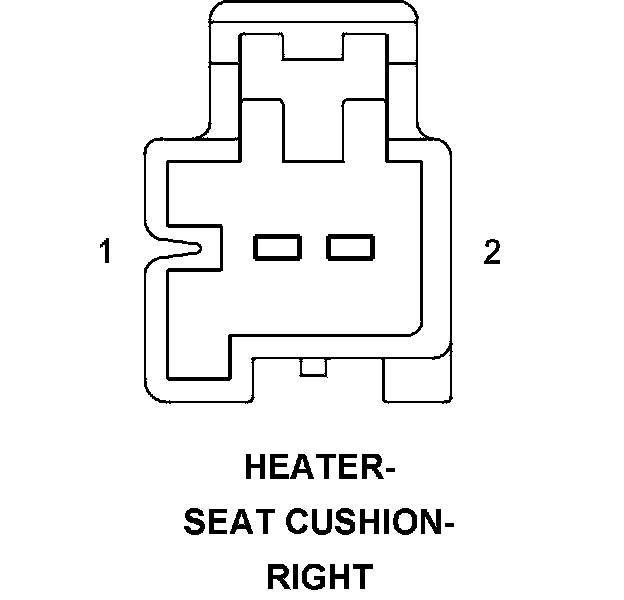

Component : HEATER-SEAT CUSHION-RIGHT

Connector:
Name : HEATER-SEAT CUSHION-RIGHT
Color :
# of pins : 2
Gender : FEMALE




Pin Description Circuit
1 RIGHT SEAT HEATER B(+) DRIVER P188 18LG/VT
2 GROUND Z915 18BK



Connector:
Name : HEATER-SEAT CUSHION-RIGHT
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Description Circuit
1 RIGHT SEAT HEATER B(+) DRIVER P188 18LG/VT
2 GROUND Z915 18BK
