Heater-Seat Cushion-Left

Component ID: 130
Component : HEATER-SEAT CUSHION-LEFT

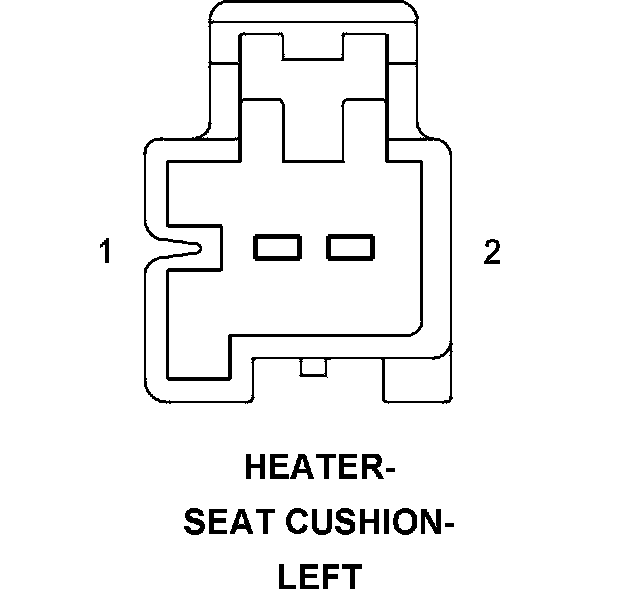

Connector:
Name : HEATER-SEAT CUSHION-LEFT
Color :
# of pins : 2
Gender : FEMALE




Pin Description Circuit
1 LEFT SEAT HEATER B(+) DRIVER P187 18LG/BR
2 GROUND Z914 18BK

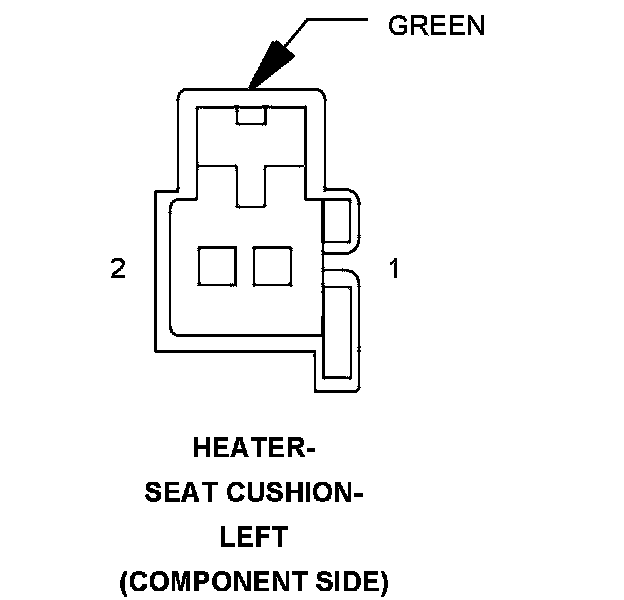

Connector:
Name : HEATER-SEAT CUSHION-LEFT
Color : GREEN
# of pins : 2
Qualifier : (COMPONENT SIDE)




Pin Description Circuit
1 LEFT SEAT HEATER B(+) DRIVER P187 18LG/BR
2 GROUND Z914 18BK
