Seat Temperature Control Module

Component ID: 193

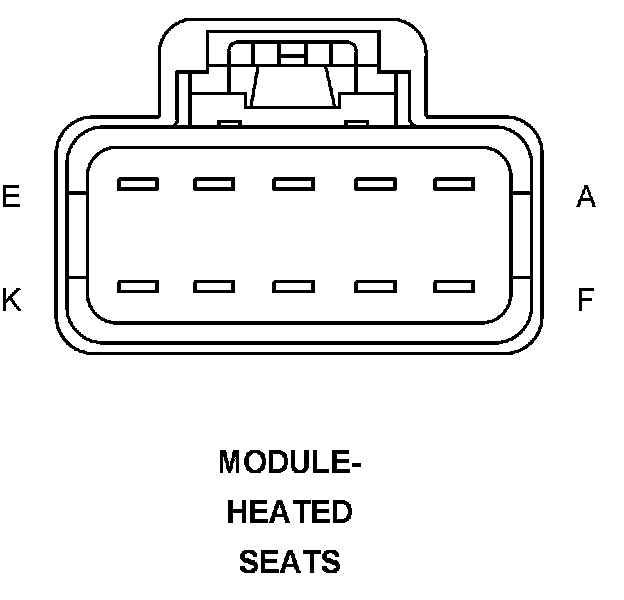

Component : MODULE-HEATED SEATS

Connector:
Name : MODULE-HEATED SEATS
Color :
# of pins : 10




A - -
B - -
C - -
D LEFT SEAT HEATER B(+) DRIVER P187 18LG/BR
E FUSED IGNITION SWITCH OUTPUT (RUN) F937 18PK/YL
F GROUND Z914 16BK
G - -
H - -
J LIN BUS D506 22WT/DG
K RIGHT SEAT HEATER B(+) DRIVER P188 18LG/VT
