Radiator Cooling Fan Motor

Component ID: 72
Component : FAN MODULE-RADIATOR COOLING

Connector:
Name : FAN MODULE-RADIATOR COOLING C1
Color :
# of pins : 2




A LOW/HIGH RAD FAN RELAY OUTPUT N23 10DB
B SERIES/PARALLEL RAD FAN RELAY FEED N210 10DB/DG

Component Location - 5






Connector:

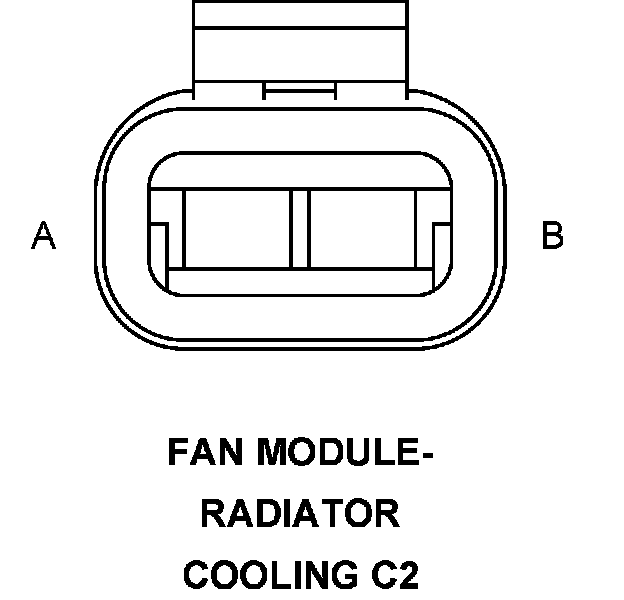

Name : FAN MODULE-RADIATOR COOLING C2
Color :
# of pins : 2




A RAD FAN RELAY OUTPUT N24 10DG
B GROUND Z920 10BK

Component Location - 5
