Motor-Window-Right Rear

Component ID: 212

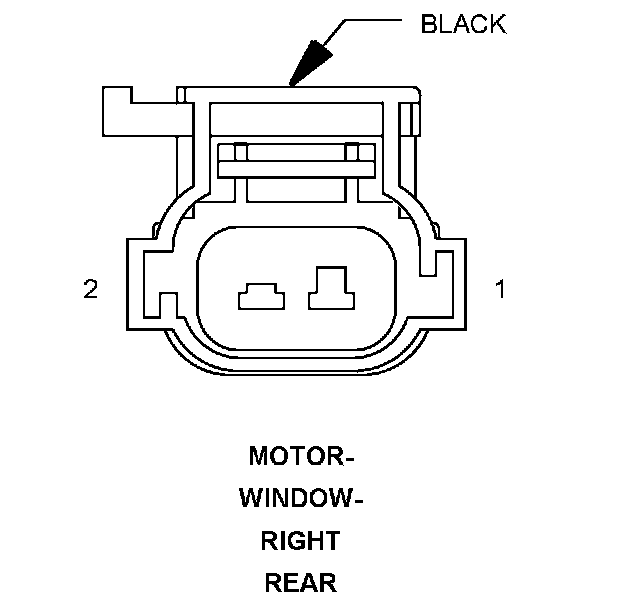

Component : MOTOR-WINDOW-RIGHT REAR

Connector:
Name : MOTOR-WINDOW-RIGHT REAR
Color : BLACK
# of pins : 2




Pin Description Circuit
1 RIGHT REAR WINDOW DRIVER (DOWN) Q212 14TN/LB
2 RIGHT REAR WINDOW DRIVER (UP) Q112 14TN/YL

Component Location - 62
