Motor-Seat Adjuster-Driver Recliner

Component ID: 205

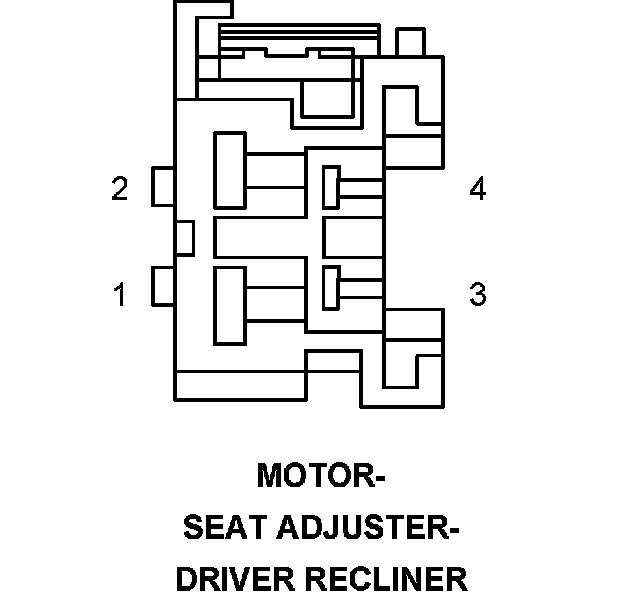

Component : MOTOR-SEAT ADJUSTER-DRIVER RECLINER

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER RECLINER
Color :
# of pins : 4




Pin Description Circuit
1 DRIVER SEAT RECLINER UP DRIVER P43 16LG/VT
2 DRIVER SEAT RECLINER DOWN DRIVER P41 16LG/GY
3 - -
4 - -
