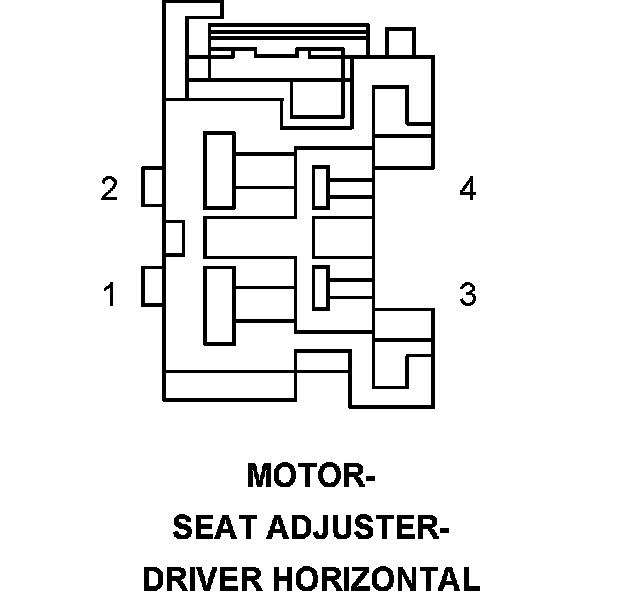

Motor-Seat Adjuster-Driver Horizontal

Component ID: 204
Component : MOTOR-SEAT ADJUSTER-DRIVER HORIZONTAL

Connector:
Name : MOTOR-SEAT ADJUSTER-DRIVER HORIZONTAL
Color :
# of pins : 4




Pin Description Circuit
1 DRIVER SEAT HORIZONTAL FORWARD DRIVER P15 16LG/WT
2 DRIVER SEAT HORIZONTAL REARWARD DRIVER P17 16LG/DG
3 - -
4 - -
