Oil Temperature Sensor/Switch, Engine

Component ID: 360
Component : SENSOR-OIL TEMPERATURE

Connector:
Name : SENSOR-OIL TEMPERATURE
Color :
# of pins : 2
Qualifier : (2.0L/2.4L)




Pin Description Circuit
1 EOT SIGNAL G24 20VT/BR
2 SENSOR GROUND K915 20BR/PK

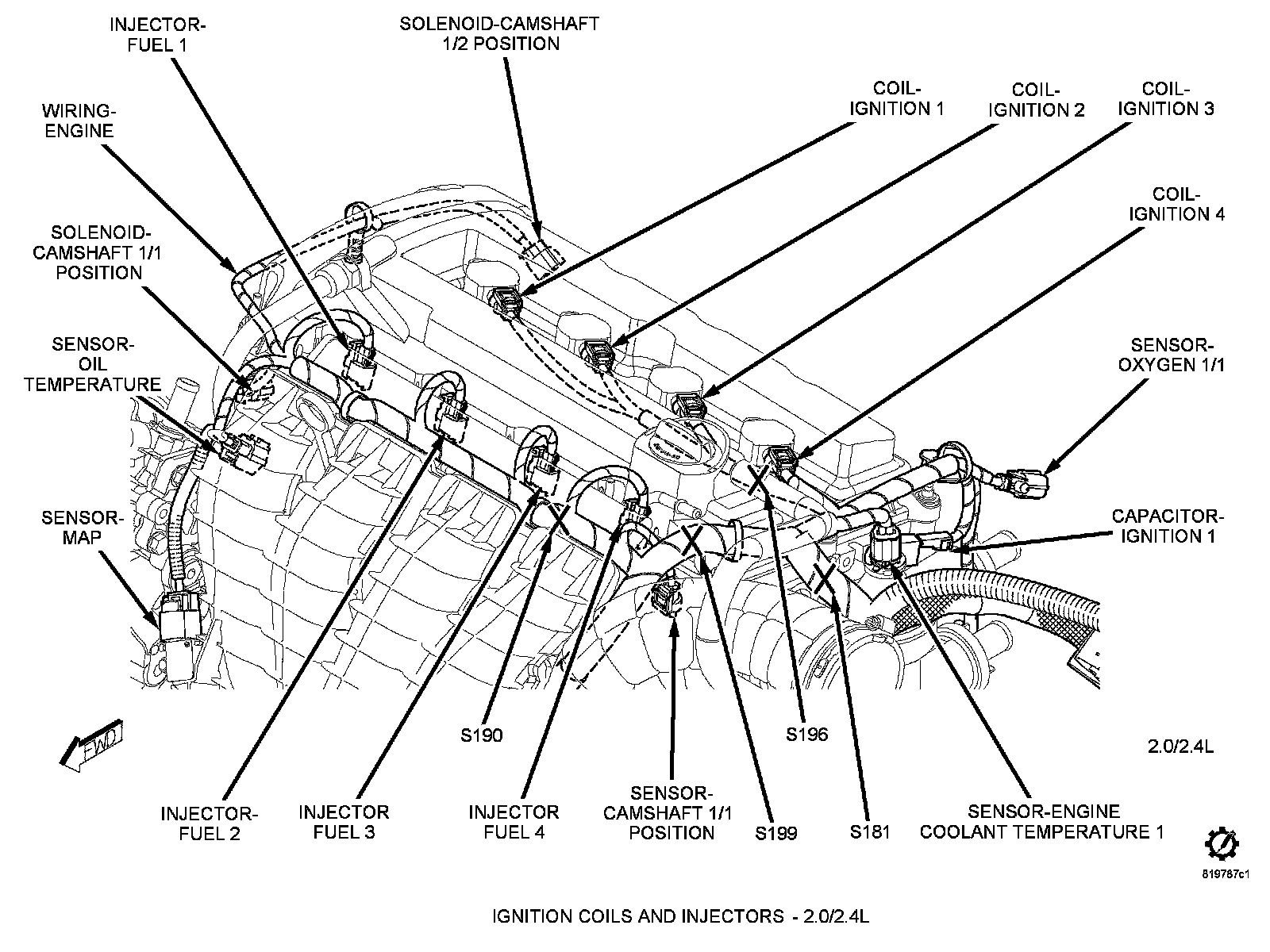

Component Location - 29
