Mirror-Outside Rearview-Driver

Component ID: 179
Component : MIRROR-OUTSIDE REARVIEW-DRIVER

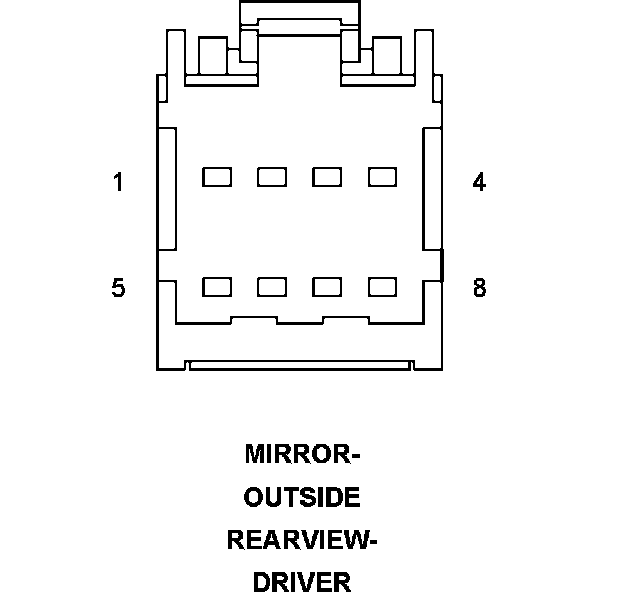

Connector:
Name : MIRROR-OUTSIDE REARVIEW-DRIVER
Color :
# of pins : 8




Pin Description Circuit
1 DRIVER MIRROR VERTICAL DRIVER P71 20TN/DG
2 MIRROR COMMON DRIVER P76 20TN
3 DRIVER MIRROR HORIZONTAL DRIVER P75 20TN/LG
4 FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT C16 20DB/GY
5 GROUND Z908 20BK
6 - -
7 - -
8 - -

Component Location - 59

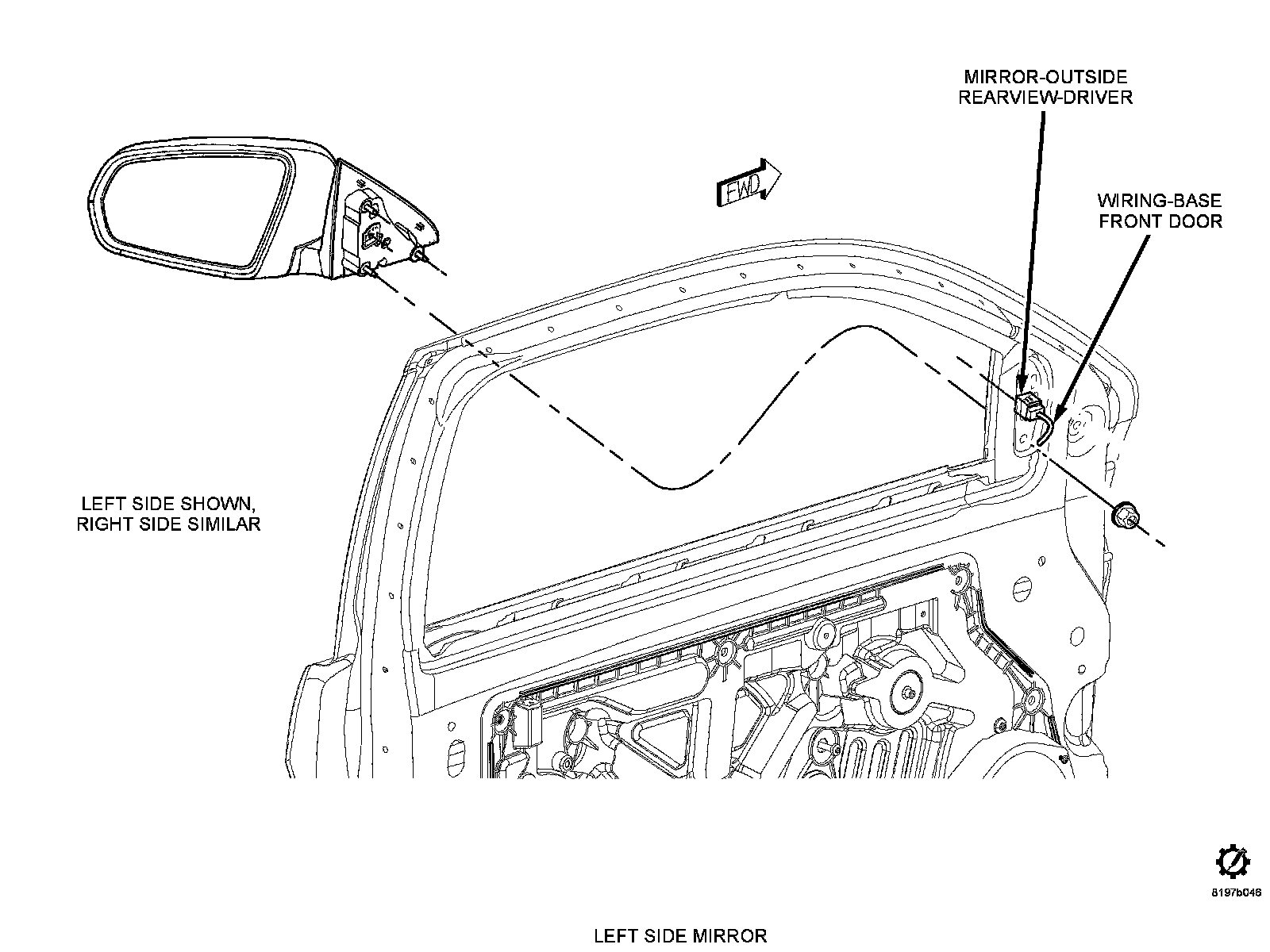

Component Location - 60
