Coil-Ignition 5

Component ID: 68

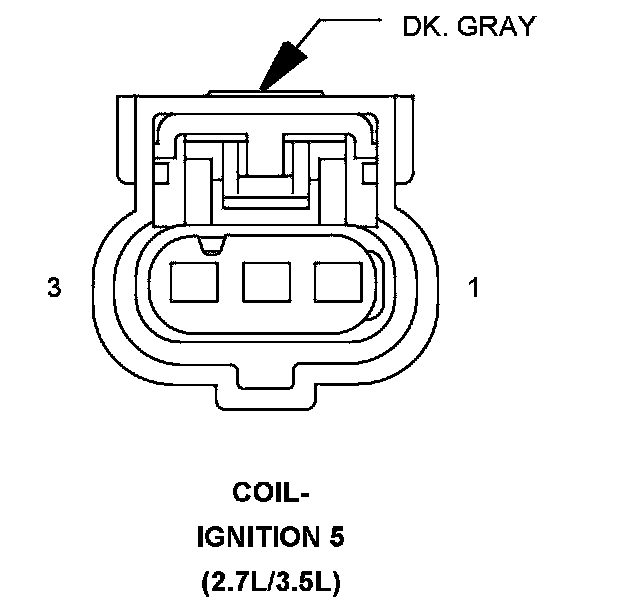

Component : COIL-IGNITION 5

Connector:
Name : COIL-IGNITION 5
Color : DK. GRAY
# of pins : 3
Qualifier : (2.7L/3.5L)




Pin Description Circuit
1 - -
2 COIL 5 CONTROL K16 18DB/YL
3 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 21




Component Location - 25
