Coil-Ignition 2

Component ID: 65

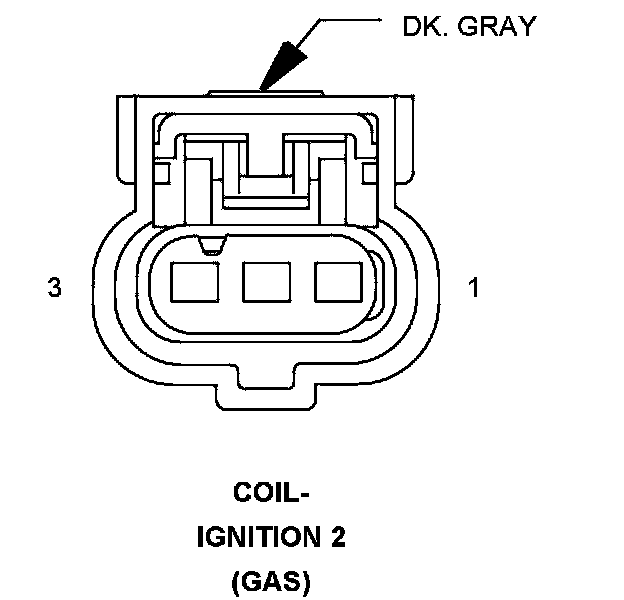

Component : COIL-IGNITION 2

Connector:
Name : COIL-IGNITION 2
Color : DK. GRAY
# of pins : 3
Qualifier : (GAS)




Pin Description Circuit
1 - -
2 COIL 2 CONTROL K17 18DB/TN
3 FUSED ASD/MAIN RELAY OUTPUT F344 20BR/DB
3 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 21




Component Location - 25




Component Location - 29
