Capacitor-Ignition 2

Component ID: 62

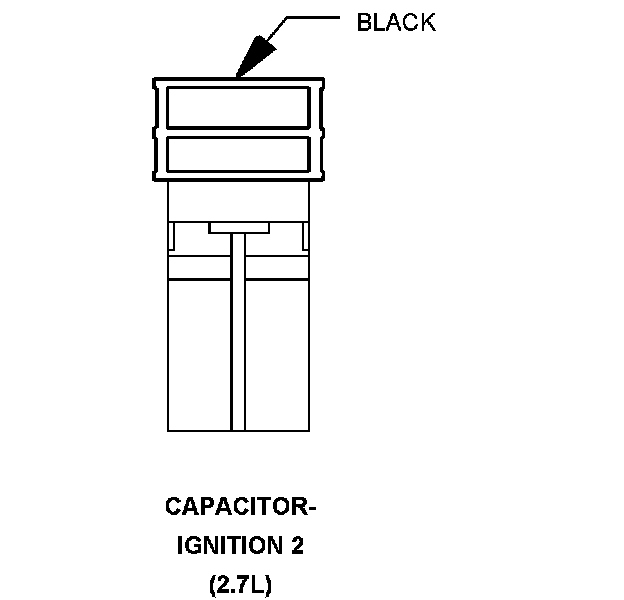

Component : CAPACITOR-IGNITION 2

Connector:
Name : CAPACITOR-IGNITION 2
Color : BLACK
# of pins : 1
Qualifier : (2.7L)




Pin Description Circuit
1 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 21




Component Location - 22
