Capacitor-Ignition 1

Component ID: 61
Component : CAPACITOR-IGNITION 1

Connector:
Name : CAPACITOR-IGNITION 1
Color : BLACK
# of pins : 1
Qualifier : (GAS)




Pin Description Circuit
1 FUSED ASD/MAIN RELAY OUTPUT F344 20BR/DB
Pin Description Circuit
1 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 21




Component Location - 26




Component Location - 29




Component Location - 30

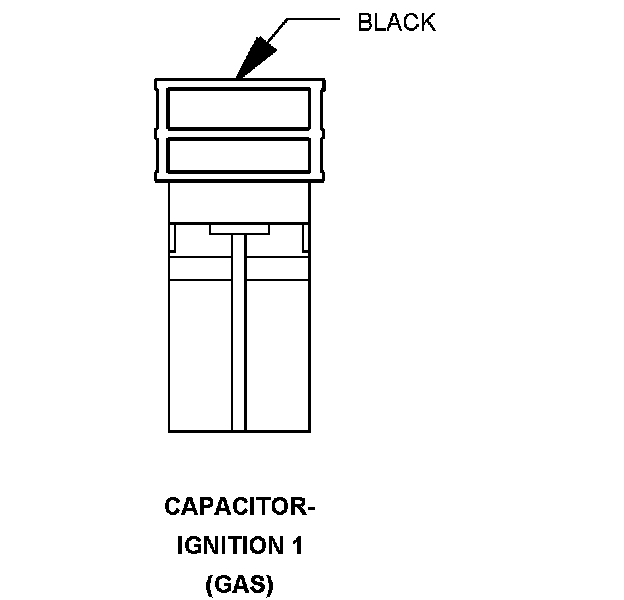

Fig. 30:
