Horn 1

Component ID: 132
Component : HORN 1

Connector:

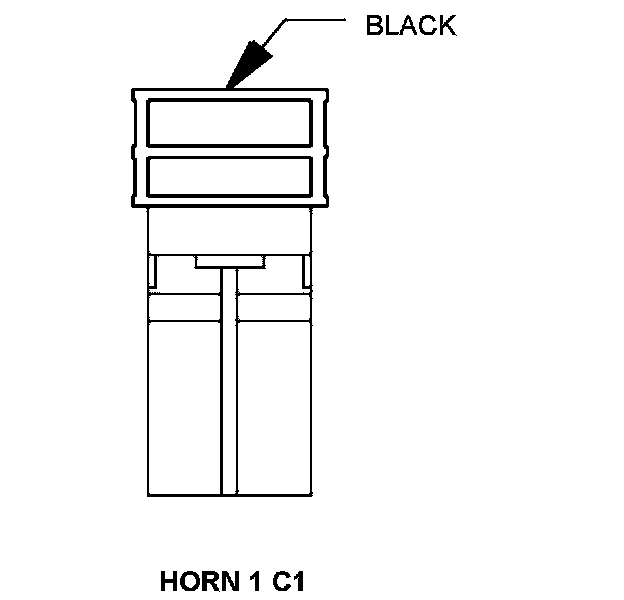

Name : HORN 1 C1
Color : BLACK
# of pins : 1




Pin Description Circuit
1 HORN CONTROL OUTPUT X21 18GY/YL

Component Location - 3






Connector:

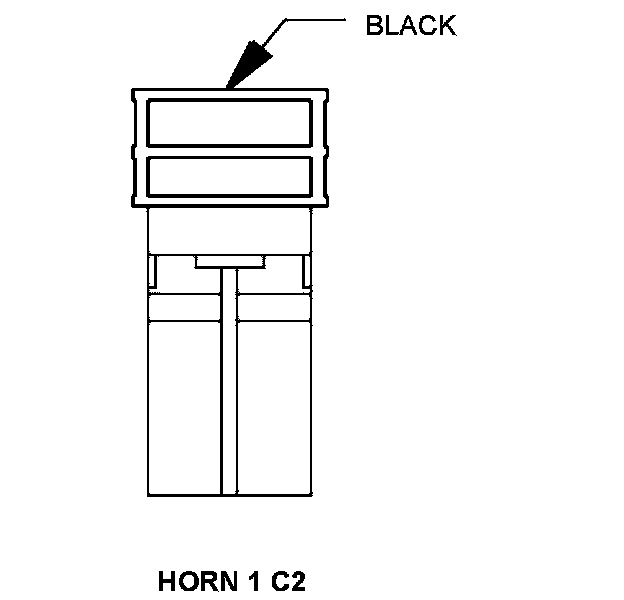

Name : HORN 1 C2
Color : BLACK
# of pins : 1




Pin Description Circuit
1 GROUND Z920 18BK

Component Location - 3
