Injector-Fuel 6

Component ID: 139

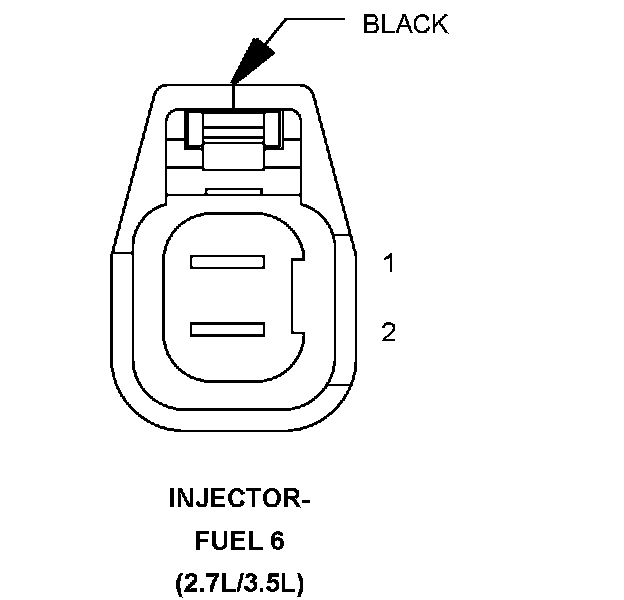

Component : INJECTOR-FUEL 6

Connector:
Name : INJECTOR-FUEL 6
Color : BLACK
# of pins : 2
Qualifier : (2.7L/3.5L)




Pin Description Circuit
1 INJECTOR 6 CONTROL K58 20BR/VT
2 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 21




Component Location - 25
