Injector-Fuel 5

Component ID: 138

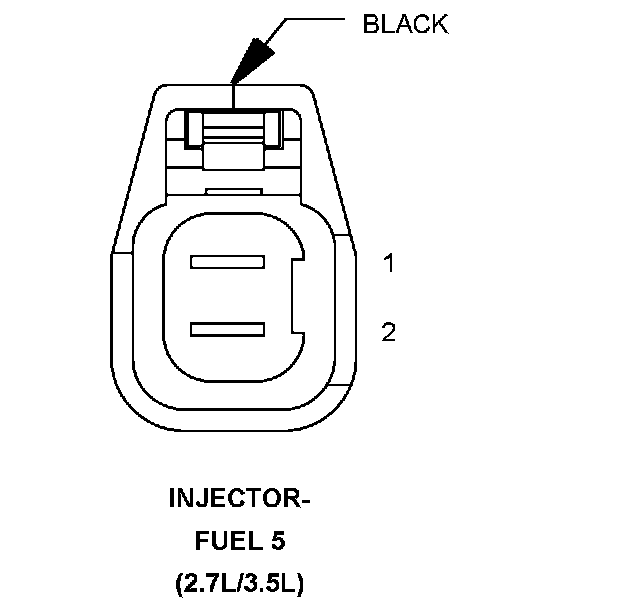

Component : INJECTOR-FUEL 5

Connector:
Name : INJECTOR-FUEL 5
Color : BLACK
# of pins : 2
Qualifier : (2.7L/3.5L)




Pin Description Circuit
1 INJECTOR 5 CONTROL K38 20BR/OR
2 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 21




Component Location - 25




Component Location - 29
