Injector-Fuel 4

Component ID: 137
Component : INJECTOR-FUEL 4

Connector:

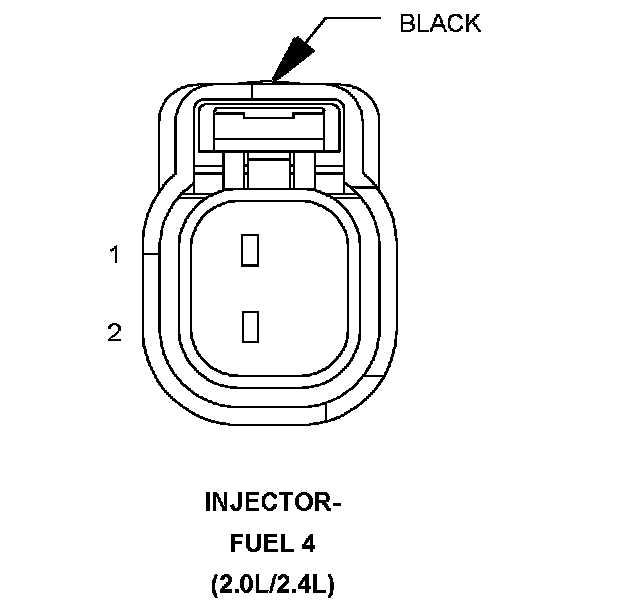

Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2
Qualifier : (2.0L/2.4L)




Pin Description Circuit
1 INJECTOR 4 CONTROL K14 20BR/TN
2 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 21




Component Location - 25




Component Location - 34






Connector:

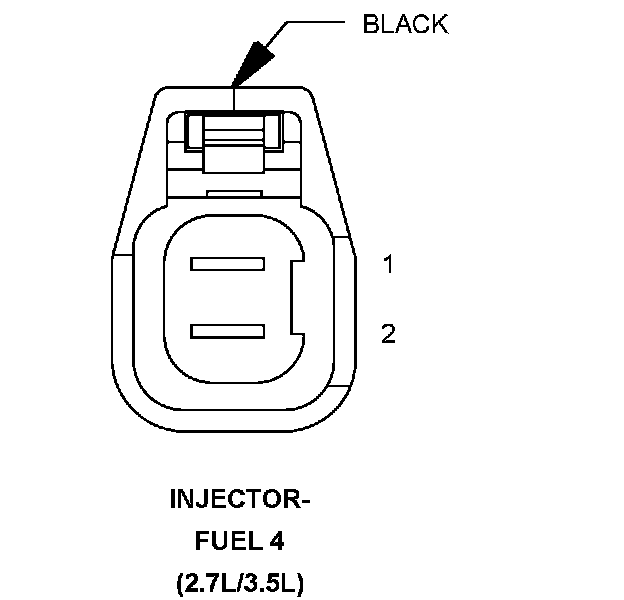

Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2
Qualifier : (2.7L/3.5L)




Pin Description Circuit
1 INJECTOR 4 CONTROL K14 20BR/TN
2 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 21




Component Location - 25




Component Location - 34






Connector:

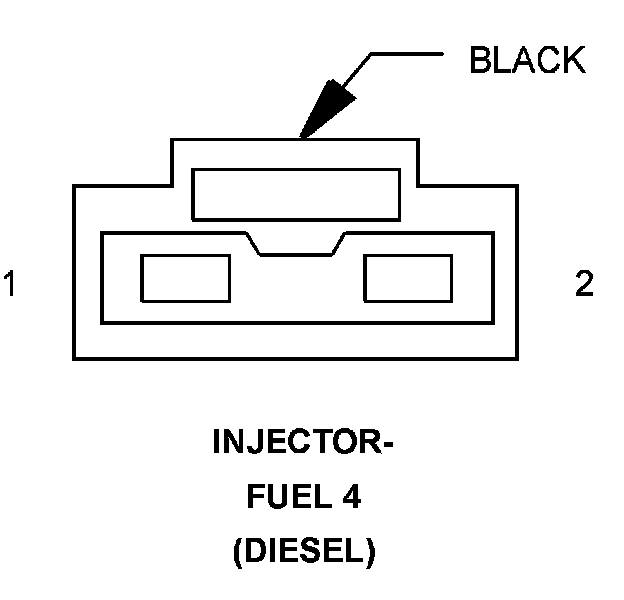

Name : INJECTOR-FUEL 4
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 FUEL INJECTOR HIGH-SIDE COMMON K663 16BR/YL
2 FUEL INJECTOR 4 LOW-SIDE CONTROL K614 16BR/LB

Component Location - 21




Component Location - 25




Component Location - 34
