Injector-Fuel 3

Component ID: 136
Component : INJECTOR-FUEL 3

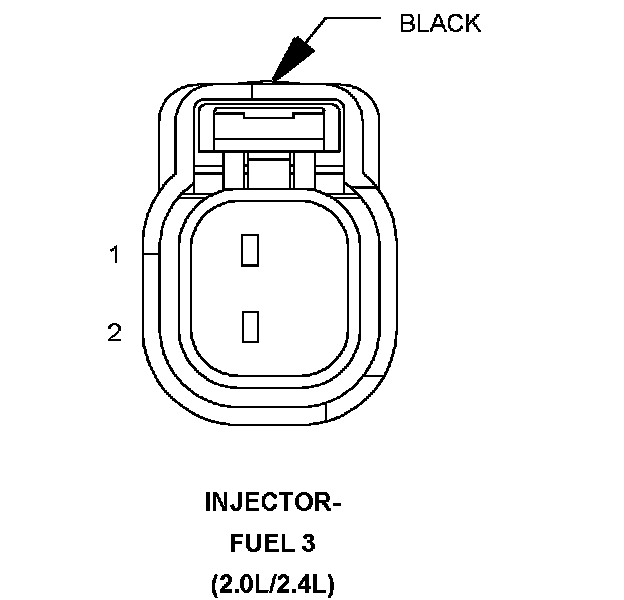

Connector:
Name : INJECTOR-FUEL 3
Color : BLACK
# of pins : 2
Qualifier : (2.0L/2.4L)




Pin Description Circuit
1 INJECTOR 3 CONTROL K13 20BR/LB
2 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 21




Component Location - 25




Component Location - 29




Component Location - 34

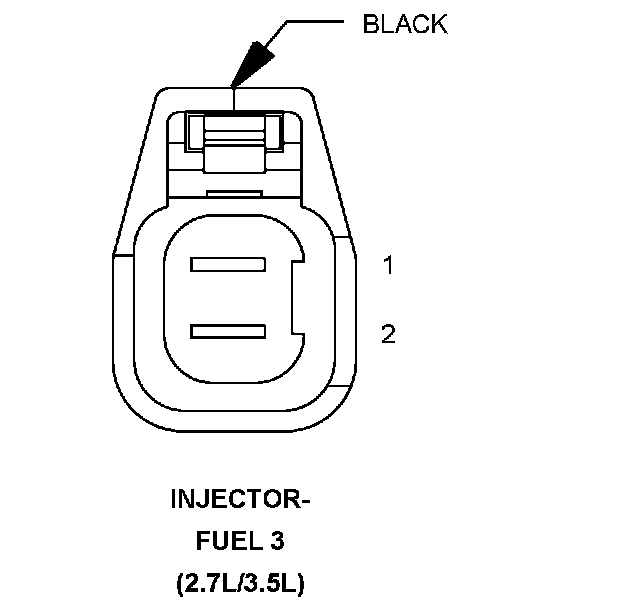

Connector:
Name : INJECTOR-FUEL 3
Color : BLACK
# of pins : 2
Qualifier : (2.7L/3.5L)




Pin Description Circuit
1 INJECTOR 3 CONTROL K13 20BR/LB
2 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL

Component Location - 21




Component Location - 25




Component Location - 29




Component Location - 34

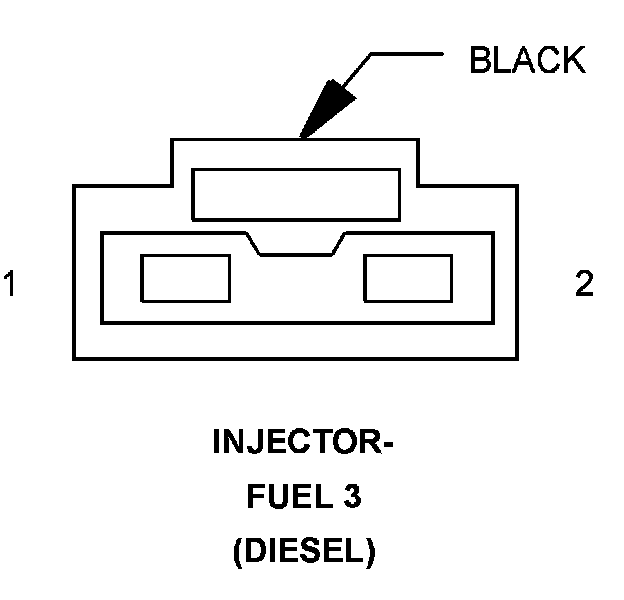

Connector:
Name : INJECTOR-FUEL 3
Color : BLACK
# of pins : 2
Qualifier : (DIESEL)




Pin Description Circuit
1 FUEL INJECTOR HIGH-SIDE COMMON K663 16BR/YL
2 FUEL INJECTOR 3 LOW-SIDE CONTROL K613 16BR/WT

Component Location - 21




Component Location - 25




Component Location - 29




Component Location - 34
