EGR Valve

Component ID: 17
Component : ASSEMBLY-EGR VALVE

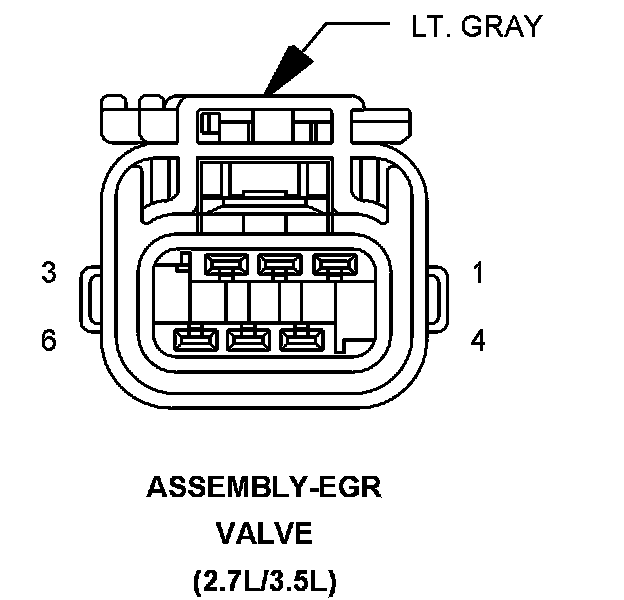

Connector:
Name : ASSEMBLY-EGR VALVE
Color : LT. GRAY
# of pins : 6
Qualifier : (2.7L/3.5L)




Pin Description Circuit
1 EGR SIGNAL K34 20DB/LG
2 5 VOLT SUPPLY F856 20YL/PK
3 SENSOR GROUND K900 20DB/LB
4 GROUND Z902 20BK
5 - -
6 EGR CONTROL K35 20DB/VT

Component Location - 21




Component Location - 25




Component Location - 26
