Dome Lamp

Component ID: 143
Component : LAMP-DOME

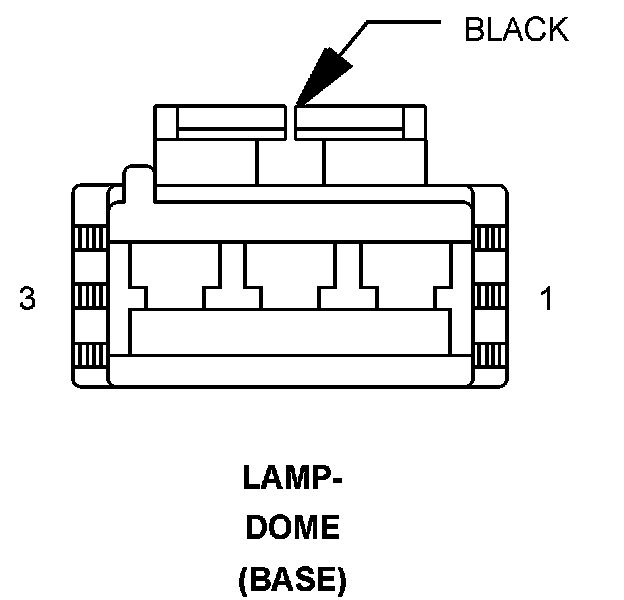

Connector:
Name : LAMP-DOME
Color : BLACK
# of pins : 3
Qualifier : (BASE)




Pin Description Circuit
1 - -
2 COURTESY LAMPS DRIVER M24 20YL/WT
3 GROUND Z907 20BK

Component Location - 49

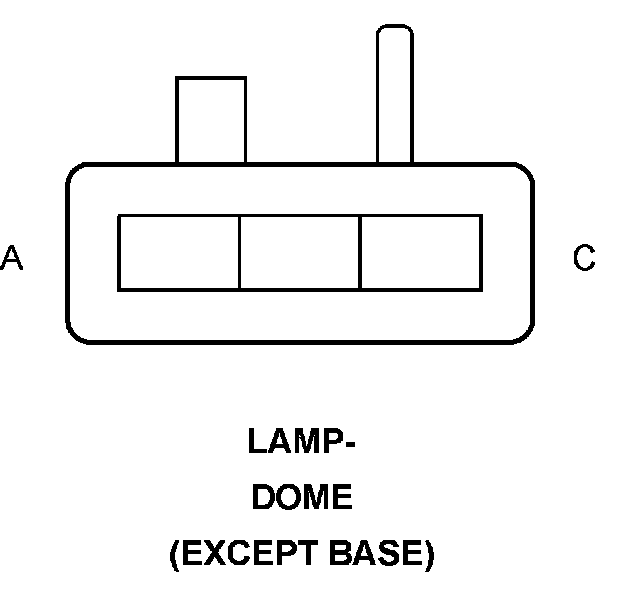

Connector:
Name : LAMP-DOME
Color :
# of pins : 3
Qualifier : (EXCEPT BASE)




A READING/RAIL LAMPS DRIVER M27 20YL/DB
B GROUND Z907 20BK
C COURTESY LAMPS DRIVER M24 20YL/WT

Component Location - 49
