Control Module HVAC

Component ID: 182
Component : MODULE-BLOWER POWER

Connector:
Name : MODULE-BLOWER POWER
Color : BLACK
# of pins : 4
Qualifier : (ATC)




Pin Description Circuit
1 GROUND Z910 12BK
2 BLOWER MOTOR SPEED CONTROL C56 20DB/LB
3 BLOWER MOTOR CONTROL C7 12DB
4 GROUND Z134 12BK/LG

Component Location - 42

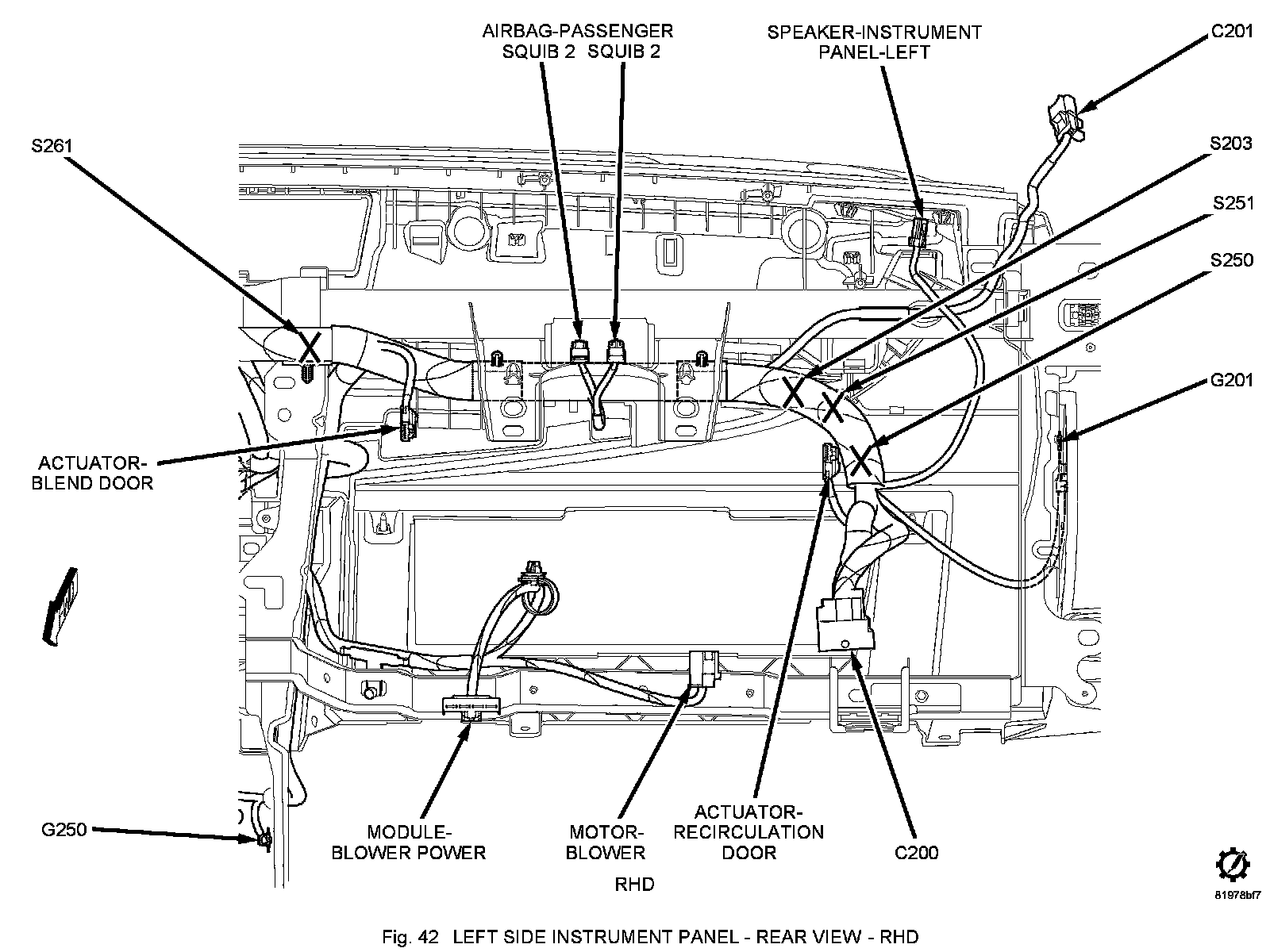

Fig. 42:
