Control Assembly, HVAC

Component ID: 70
Component : CONTROL-A/C-HEATER

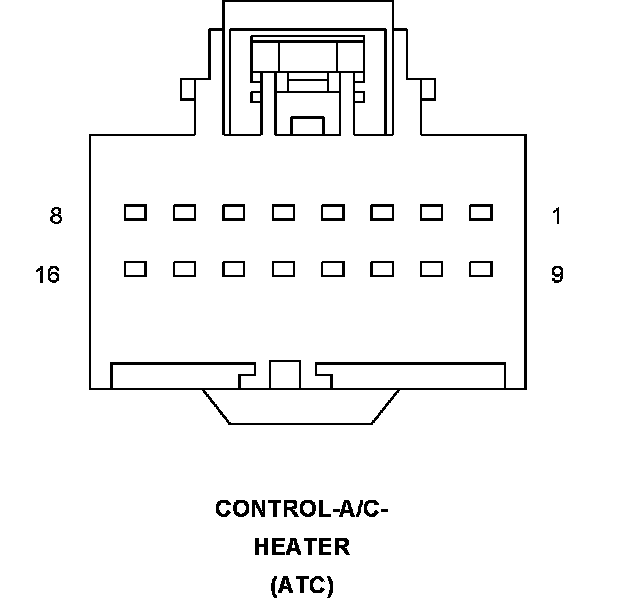

Connector:
Name : CONTROL-A/C-HEATER
Color :
# of pins : 16
Qualifier : (ATC)




Pin Description Circuit
1 BLOWER MOTOR SPEED CONTROL C56 20DB/LB
2 FUSED B(+) (I.O.D.) A417 20RD/DB
3 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/DB
4 GROUND Z912 20BK
5 CAN B BUS (-) D54 20WT
6 CAN B BUS (+) D55 20WT/OR
7 SENSOR GROUND C121 20DB/DG
8 EVAPORATOR TEMPERATURE SENSOR SIGNAL C21 20DB/LG
9 AUTO HEADLAMPS SIGNAL L24 20WT/VT
10 SUN SENSOR RETURN G939 20VT/DB
11 RECIRCULATION DOOR DRIVER (A) C32 20DB/TN
12 MODE DOOR DRIVER (A) C35 20LB/OR
13 BLEND DOOR DRIVER C61 20DB/LG
14 COMMON DOOR DRIVER C34 20DB/LB
15 IR SENSOR RETURN C830 20DB/YL
16 IR SENSOR SIGNAL C83 20DB/LG

Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

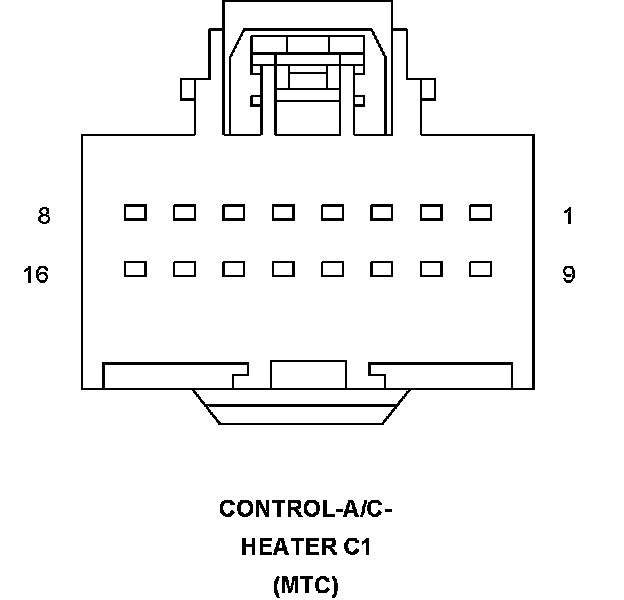

Connector:
Name : CONTROL-A/C-HEATER C1
Color :
# of pins : 16
Qualifier : (MTC)




Pin Description Circuit
1 - -
2 - -
3 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/DB
4 GROUND Z912 20BK
5 CAN B BUS (-) D54 20WT
6 CAN B BUS (+) D55 20WT/OR
7 SENSOR GROUND C121 20DB/DG
8 EVAPORATOR TEMPERATURE SENSOR SIGNAL C21 20DB/LG
9 AUTO HEADLAMPS SIGNAL L24 20WT/VT
10 SUN SENSOR RETURN G939 20VT/DB
11 RECIRCULATION DOOR DRIVER (A) C32 20DB/TN
12 MODE DOOR DRIVER (A) C35 20LB/OR
13 BLEND DOOR DRIVER C61 20DB/LG
14 COMMON DOOR DRIVER C34 20DB/LB
15 - -
16 - -

Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:

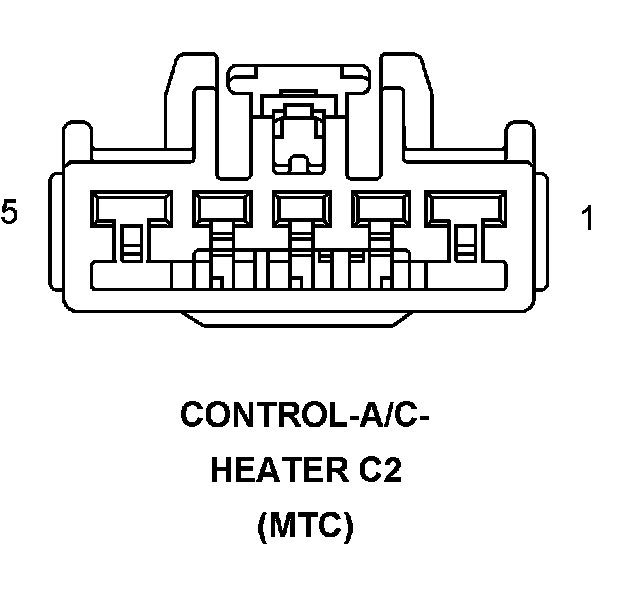

Connector:
Name : CONTROL-A/C-HEATER C2
Color :
# of pins : 5
Qualifier : (MTC)




Pin Description Circuit
1 GROUND Z910 12BK
2 BLOWER MOTOR LOW DRIVER C71 18DB/BR
3 BLOWER MOTOR M1 DRIVER C72 18DB/OR
4 BLOWER MOTOR M2 DRIVER C73 18DB/VT
5 BLOWER MOTOR HIGH DRIVER C70 12DB/YL

Component Location - 38

Fig. 38:

Component Location - 41

Fig. 41:

Component Location - 43

Fig. 43:
