Compass

Component ID: 184
Component : MODULE-COMPASS

Connector:
Name : MODULE-COMPASS
Color :
# of pins : 4




Pin Description Circuit
1 - -
2 LIN BUS D506 20WT/DG
3 GROUND Z910 20BK
4 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/DB

Component Location - 35




Component Location - 40

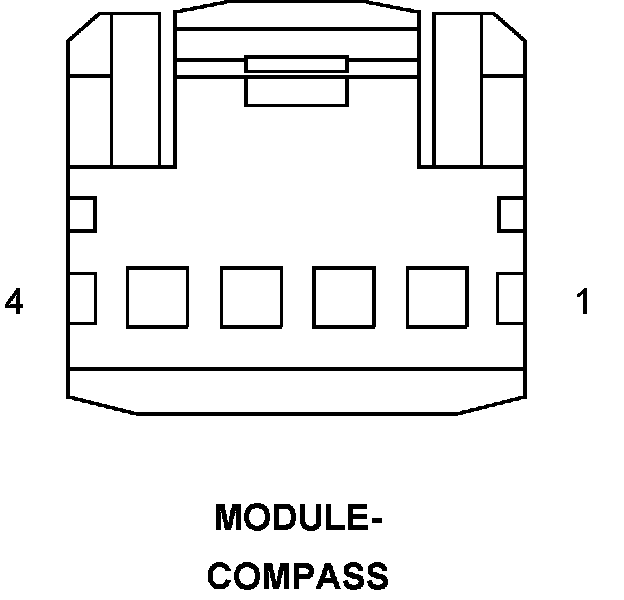

Fig. 40:
