Clutch Switch

Component ID: 397
Component : SWITCH-CLUTCH INTERLOCK

Connector:
Name : SWITCH-CLUTCH INTERLOCK
Color : BLACK
# of pins : 3
Qualifier : (MTX)




Pin Description Circuit
1 CLUTCH UPSTOP SIGNAL T26 20DG/OR
2 GROUND Z908 18BK
3 CLUTCH INTERLOCK SIGNAL T141 20YL/OR
3 CLUTCH INTERLOCK SIGNAL T41 20YL/DB

Component Location - 53




Component Location - 56

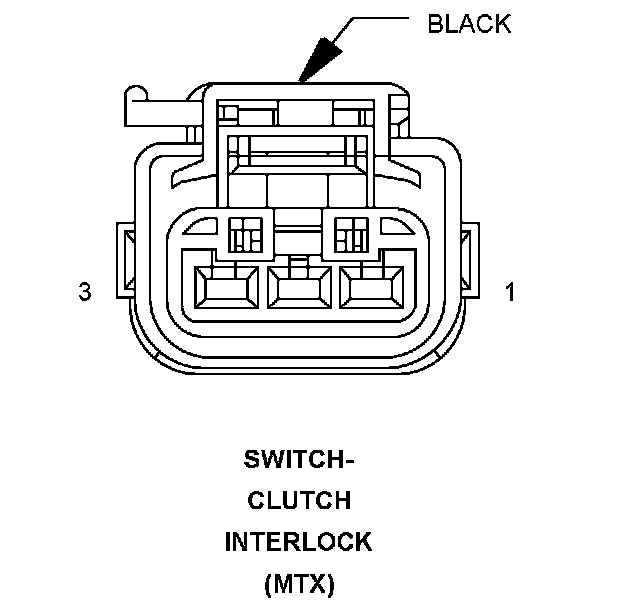

Fig. 56:
