C314

Component ID: 60
Component : C314

Connector:

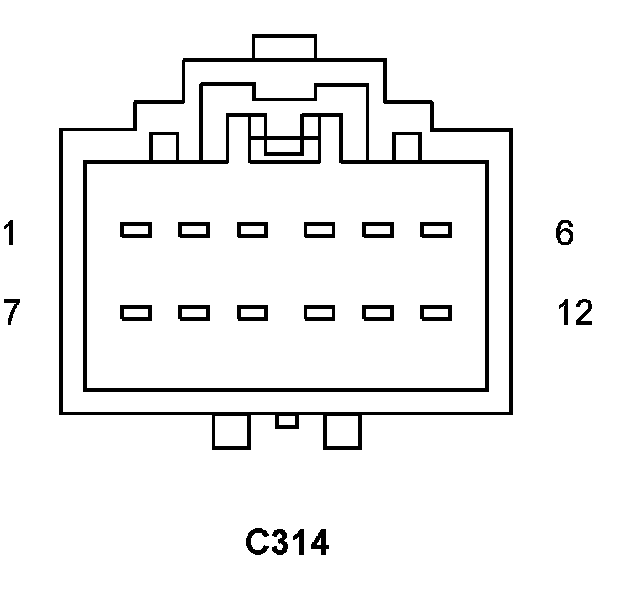

Name : C314
Color :
# of pins : 12
Gender : FEMALE




Pin Description Circuit
1 GROUND Z915 18BK
2 - -
3 - -
4 - -
5 - -
6 PASSENGER SEAT POSITION SENSOR DATA R262 20WT/LB
7 RIGHT SEAT HEATER B(+) DRIVER P188 18LG/VT
7 LEFT SEAT HEATER B(+) DRIVER P187 18LG/BR
8 - -
9 - -
10 - -
11 - -
12 PASSENGER SEAT POSITION SENSOR VOLTAGE R264 20VT/LB

Component Location - 58






Connector:

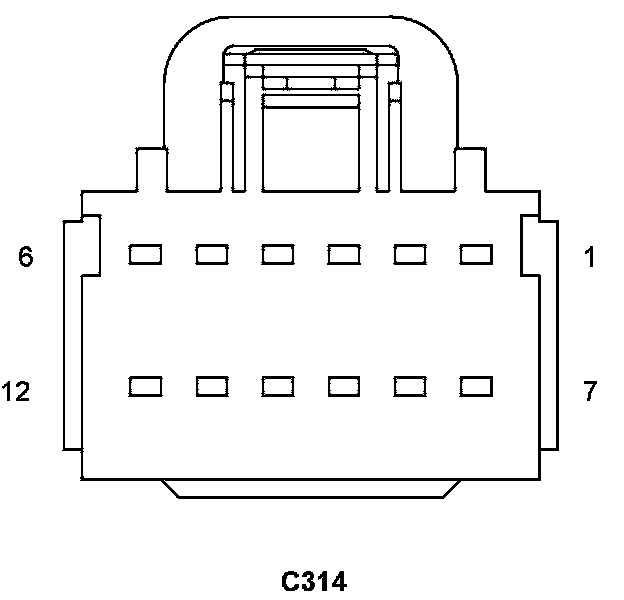

Name : C314
Color :
# of pins : 12
Gender : MALE




Pin Description Circuit
1 GROUND Z915 20BK
2 - -
3 - -
4 - -
5 - -
6 PASSENGER SEAT POSITION SENSOR DATA R262 20WT/LB
7 RIGHT SEAT HEATER B(+) DRIVER P188 18LG/VT
7 LEFT SEAT HEATER B(+) DRIVER P187 18LG/BR
8 - -
9 - -
10 - -
11 - -
12 PASSENGER SEAT POSITION SENSOR VOLTAGE R264 20VT/LB

Component Location - 58
