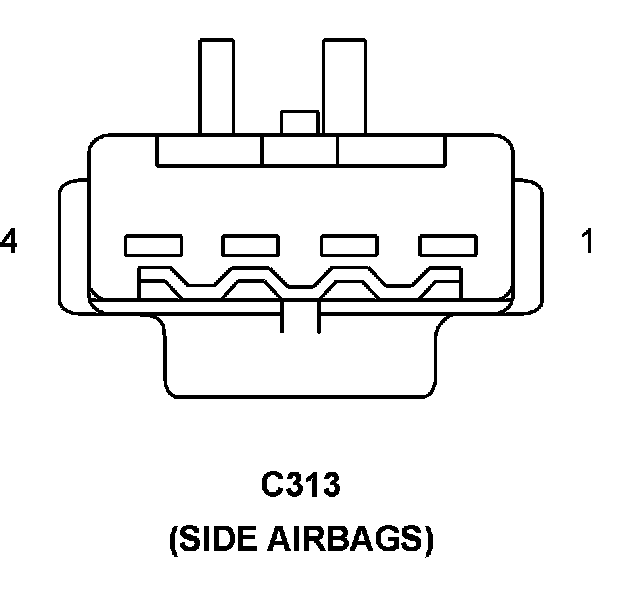

C313

Component ID: 59
Component : C313

Connector:
Name : C313
Color :
# of pins : 4
Qualifier : (SIDE AIRBAGS)




Pin Description Circuit
1 - -
2 - -
3 RIGHT SEAT SQUIB 1 LINE 2 R6 18VT/LB
3 LEFT SEAT SQUIB 1 LINE 2 R5 20VT
4 RIGHT SEAT SQUIB 1 LINE 1 R8 18GY/LG
4 LEFT SEAT SQUIB 1 LINE 1 R7 20LG/GY

Component Location - 58






Connector:
Name : C313
Color :
# of pins : 4
Qualifier : (SIDE AIRBAGS)
Gender : FEMALE




Pin Description Circuit
1 - -
2 - -
3 RIGHT SEAT SQUIB 1 LINE 2 R6 20VT/LB
3 LEFT SEAT SQUIB 1 LINE 2 R5 20VT
4 RIGHT SEAT SQUIB 1 LINE 1 R8 20GY/LG
4 LEFT SEAT SQUIB 1 LINE 1 R7 20LG/GY

Component Location - 58
