C309

Component ID: 56
Component : C309

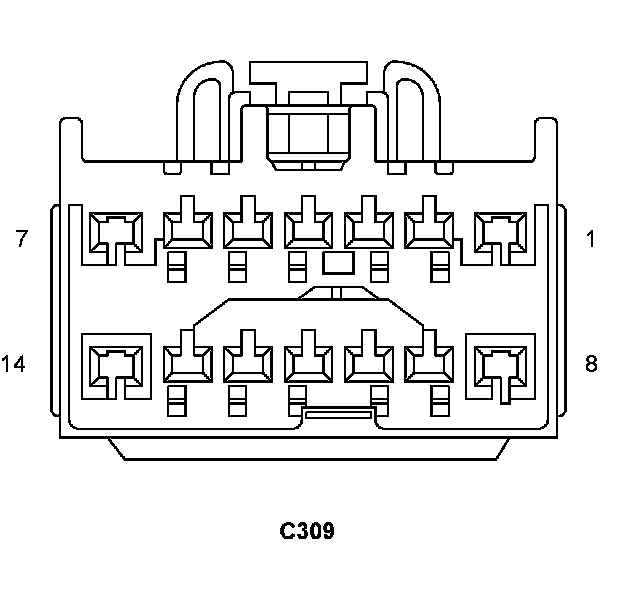

Connector:
Name : C309
Color :
# of pins : 14
Gender : FEMALE




Pin Description Circuit
1 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/PK
2 - -
3 DOOR LOCK DRIVER P33 20TN/DB
4 SECONDARY LOCK DRIVER P235 20LG/TN
5 RIGHT REAR DOOR AJAR SWITCH SENSE G76 22VT/YL
6 - -
7 MASTER WINDOW SWITCH RIGHT REAR (UP) Q412 14OR/LG
8 MASTER WINDOW SWITCH RIGHT REAR (DOWN) Q612 14OR/DB
9 - -
10 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
11 SECONDARY UNLOCK DRIVER P237 20DG/TN
12 GROUND Z915 20BK
13 - -
14 - -

Component Location - 58




Component Location - 62

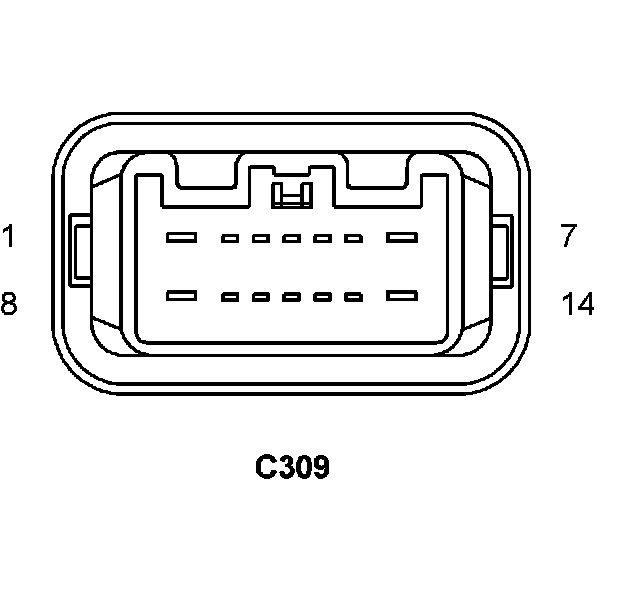

Connector:
Name : C309
Color :
# of pins : 14
Gender : MALE




Pin Description Circuit
1 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/LB
2 - -
3 DOOR LOCK DRIVER P33 20TN/DB
4 SECONDARY LOCK DRIVER P235 20LG/TN
5 RIGHT REAR DOOR AJAR SWITCH SENSE G76 20VT/YL
6 - -
7 MASTER WINDOW SWITCH RIGHT REAR (UP) Q412 14OR/WT
8 MASTER WINDOW SWITCH RIGHT REAR (DOWN) Q612 14OR/GY
9 - -
10 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
11 SECONDARY UNLOCK DRIVER P237 20DG/TN
12 GROUND Z915 20BK
13 - -
14 - -

Component Location - 58




Component Location - 62
