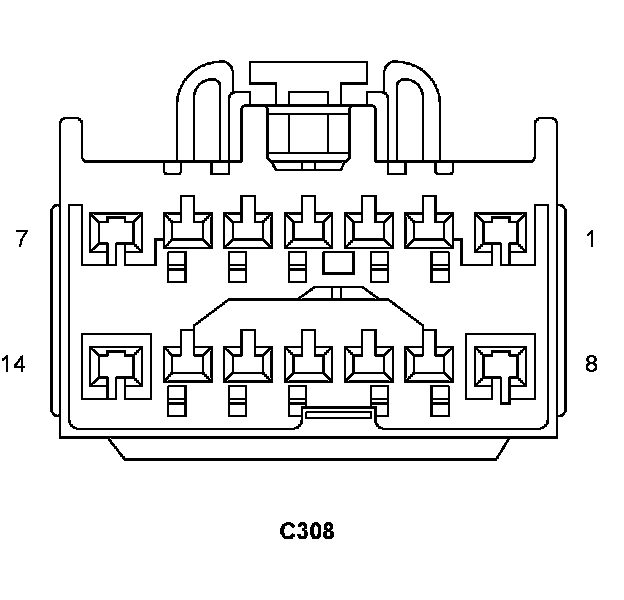

C308

Component ID: 55
Component : C308

Connector:
Name : C308
Color :
# of pins : 14
Gender : FEMALE




Pin Description Circuit
1 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/PK
2 - -
3 DOOR LOCK DRIVER P33 20TN/DB
4 SECONDARY LOCK DRIVER P235 20LG/TN
5 LEFT REAR DOOR AJAR SWITCH SENSE G77 22VT/GY
6 - -
7 MASTER WINDOW SWITCH LEFT REAR (UP) Q411 14OR/WT
8 MASTER WINDOW SWITCH LEFT REAR (DOWN) Q611 14OR/GY
9 - -
10 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
11 SECONDARY UNLOCK DRIVER P237 20DG/TN
12 GROUND Z914 20BK
13 - -
14 - -

Component Location - 57




Component Location - 62






Connector:
Name : C308
Color :
# of pins : 14
Gender : MALE




Pin Description Circuit
1 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/PK
2 - -
3 DOOR LOCK DRIVER P33 20TN/DB
4 SECONDARY LOCK DRIVER P235 20LG/TN
5 LEFT REAR DOOR AJAR SWITCH SENSE G77 20VT/GY
6 - -
7 MASTER WINDOW SWITCH LEFT REAR (UP) Q411 14OR/WT
8 MASTER WINDOW SWITCH LEFT REAR (DOWN) Q611 14OR/GY
9 - -
10 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
11 SECONDARY UNLOCK DRIVER P237 20DG/TN
12 GROUND Z914 20BK
13 - -
14 - -

Component Location - 57




Component Location - 62
