C306

Component ID: 54
Component : C306

Connector:
Name : C306
Color :
# of pins : 3
Gender : FEMALE




Pin Description Circuit
1 PARK LAMP CONTROL OUTPUT L217 20WT/VT
2 GROUND Z916 20BK
3 - -

Component Location - 67

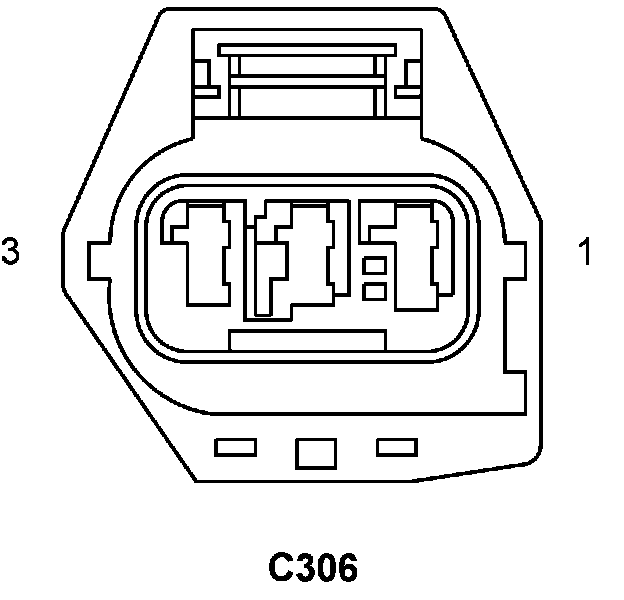

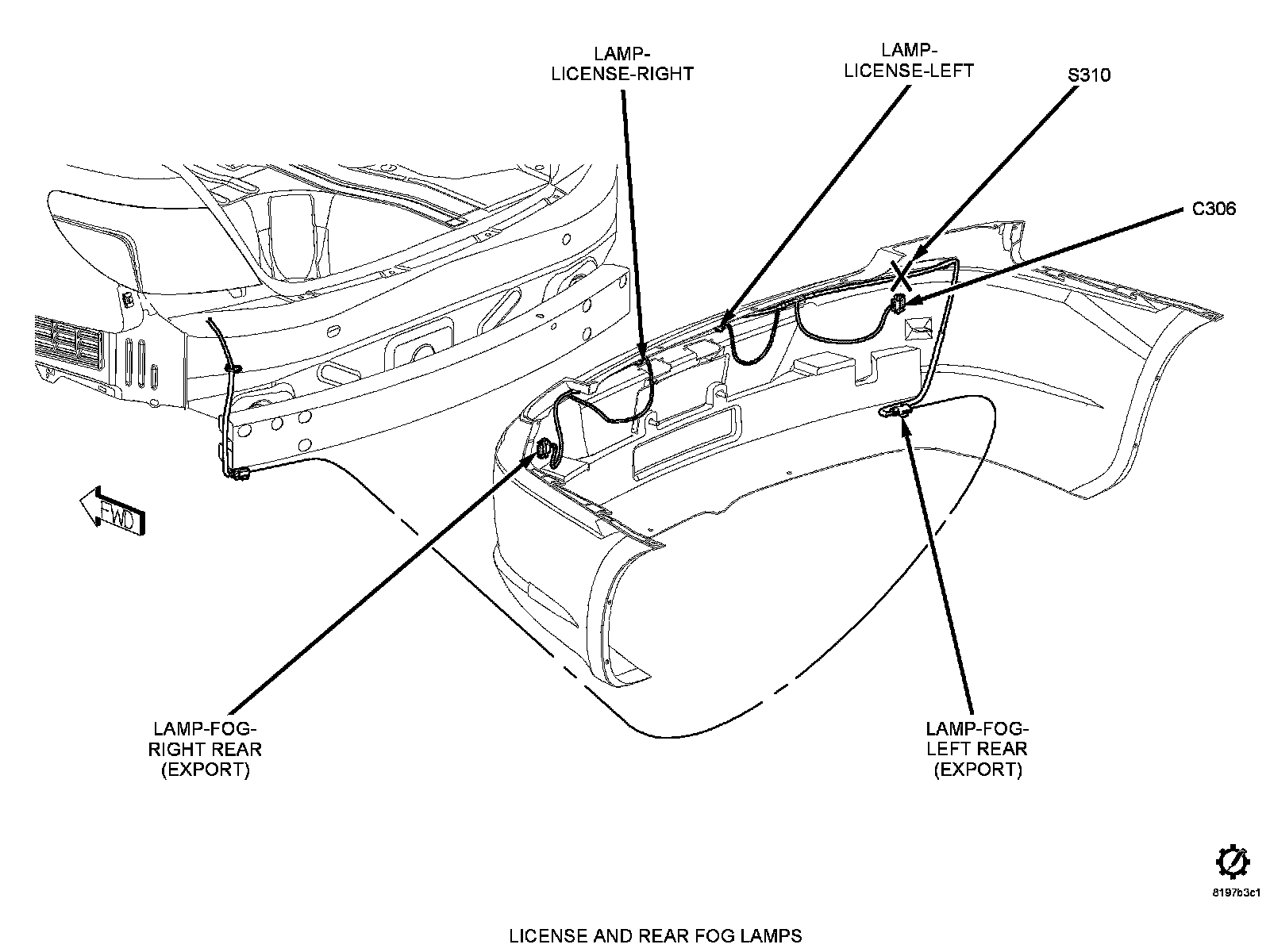

Fig. 67:

Component Location - 72






Connector:
Name : C306
Color :
# of pins : 3
Gender : MALE




Pin Description Circuit
1 PARK LAMP CONTROL OUTPUT L217 20WT/VT
2 GROUND Z916 20BK
3 - -

Component Location - 67

Fig. 67:

Component Location - 72
