C305

Component ID: 53
Component : C305

Connector:
Name : C305
Color : BLACK
# of pins : 14
Gender : FEMALE




Pin Description Circuit
1 - -
2 FUSED B(+) (I.O.D.) A418 20RD/LG
3 IR SENSOR SIGNAL C83 20DB/LG
4 CAN B BUS (-) D54 20WT
5 IR SENSOR RETURN C830 20DB/YL
6 IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/WT
7 GROUND Z907 20BK
7 GROUND Z907 16BK
8 FUSED B(+) A927 16RD/WT
9 UGDO ENABLE CONTROL CIRCUIT G38 20GY
10 SIREN SIGNAL CONTROL D96 20WT/LB
11 CAN B BUS (+) D55 20WT/OR
12 READING/RAIL LAMPS DRIVER M27 20YL/DB
13 COURTESY LAMPS DRIVER M24 20YL/WT
14 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/DG

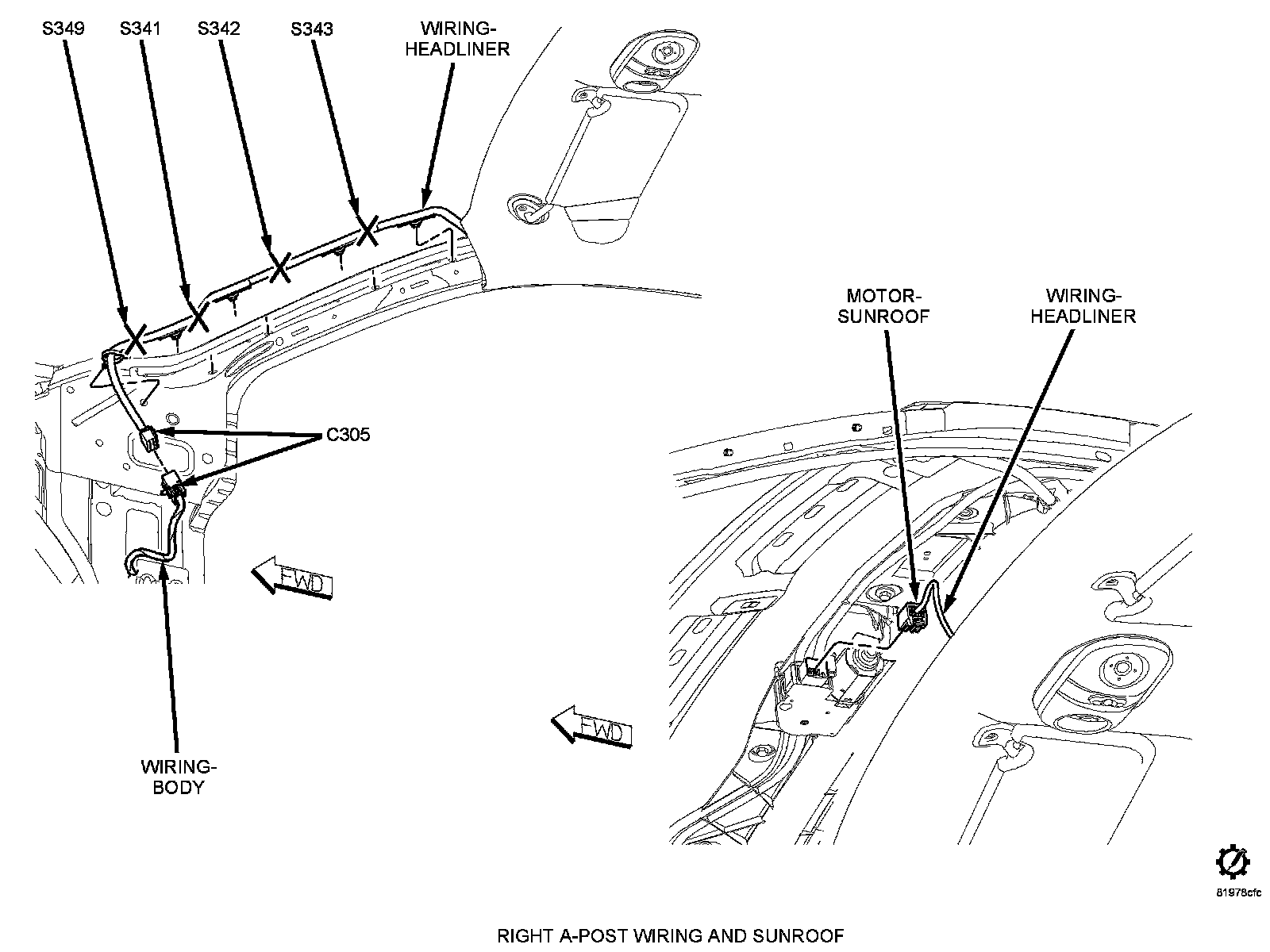

Component Location - 48

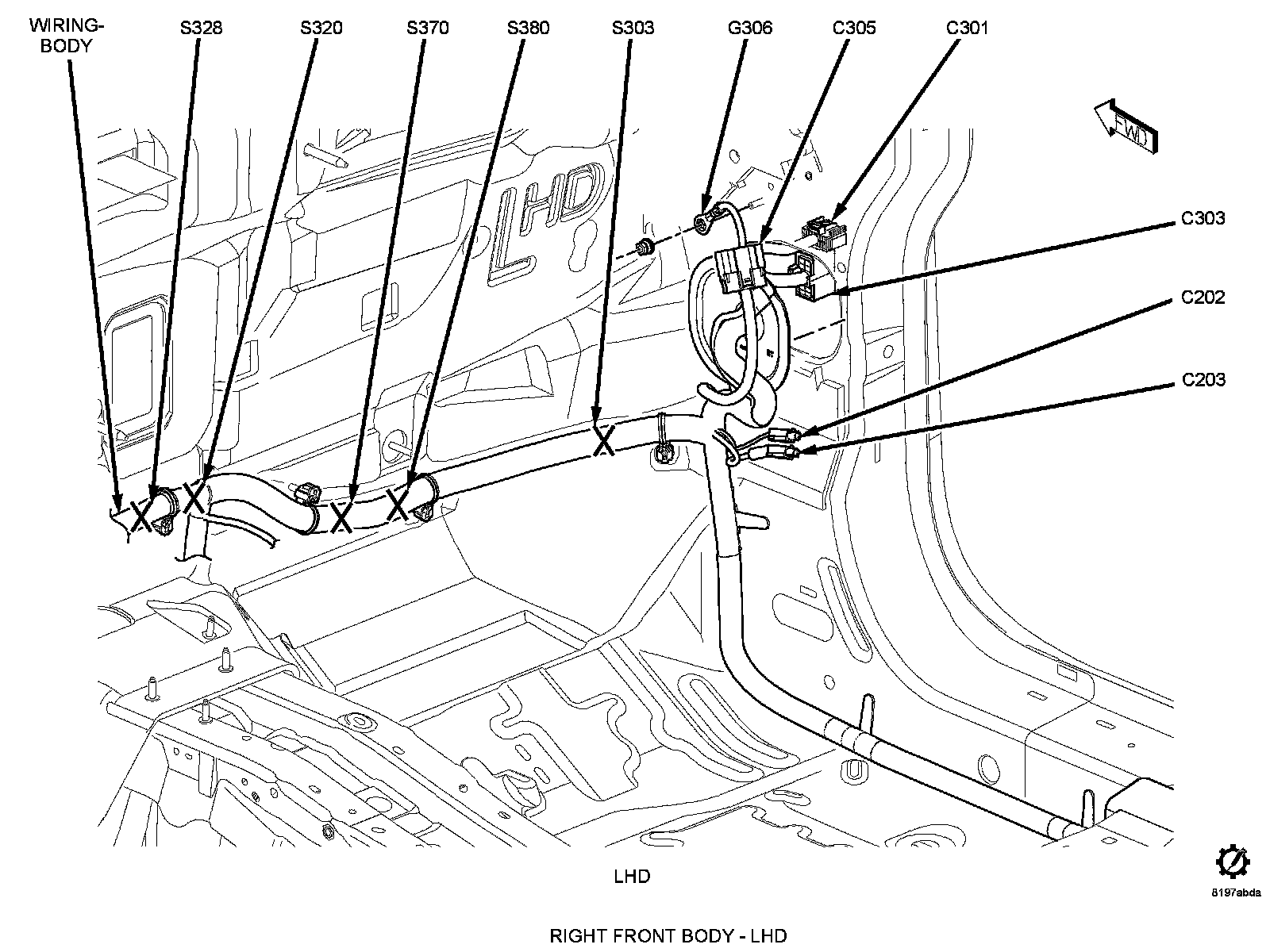

Component Location - 55




Component Location - 56

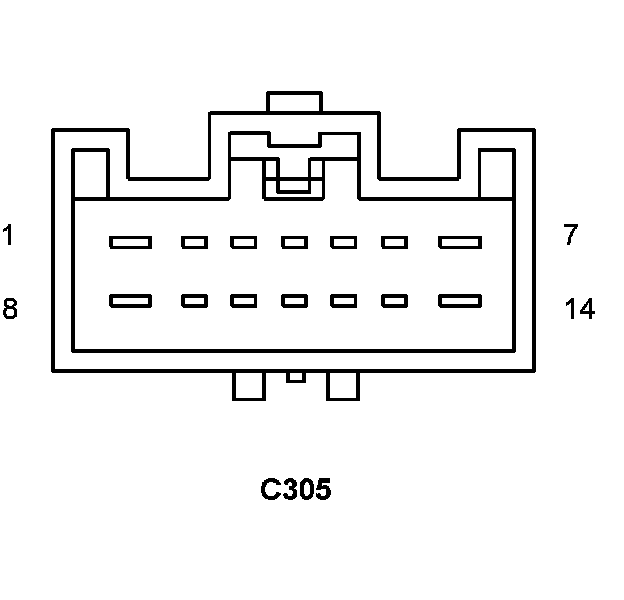

Fig. 56:

Connector:
Name : C305
Color :
# of pins : 14
Gender : MALE




Pin Description Circuit
1 - -
2 FUSED B(+) (I.O.D.) A418 20RD/LG
3 IR SENSOR SIGNAL C83 20DB/LG
4 CAN B BUS (-) D54 20WT
5 IR SENSOR RETURN C830 20DB/YL
6 IGNITION SWITCH OUTPUT (RUN-START) F202 18PK/WT
7 GROUND Z907 16BK
8 FUSED B(+) A927 16RD/WT
9 UGDO ENABLE CONTROL CIRCUIT G38 20GY
10 SIREN SIGNAL CONTROL D96 20WT/LB
11 CAN B BUS (+) D55 20WT/OR
12 READING/RAIL LAMPS DRIVER M27 22YL/LB
13 COURTESY LAMPS DRIVER M24 20YL/WT
14 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/DG

Component Location - 48




Component Location - 55




Component Location - 56

Fig. 56:
