C304

Component ID: 52
Component : C304

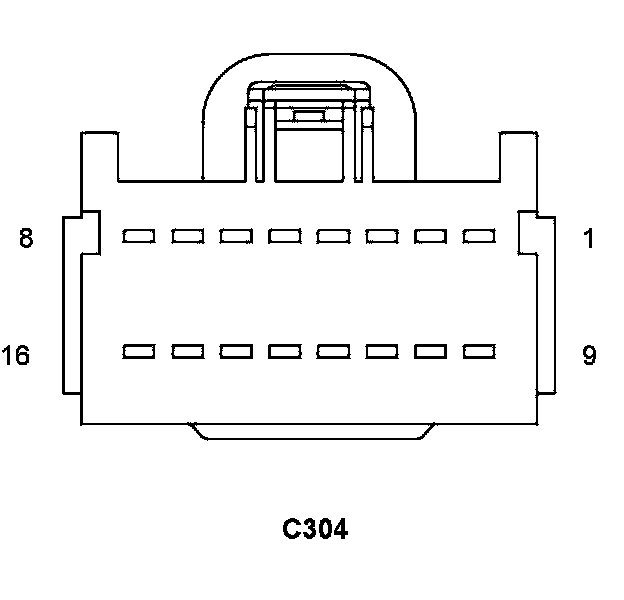

Connector:
Name : C304
Color :
# of pins : 16
Gender : FEMALE




Pin Description Circuit
1 LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
Pin Description Circuit
1 RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
2 DOOR LOCK DRIVER P33 20TN/DB
3 MIRROR COMMON DRIVER P76 20LG
4 LEFT FRONT DOOR AJAR SWITCH SENSE G75 22VT
4 RIGHT FRONT DOOR AJAR SWITCH SENSE G74 22VT/WT
5 FOLDING MIRROR RETURN P110 20LG/WT
6 PASSENGER MIRROR VERTICAL DRIVER P72 20TN/GY
7 SECONDARY LOCK DRIVER P235 20LG/TN
8 CAN B BUS (-) D54 20WT
9 LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
9 RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
10 SECONDARY UNLOCK DRIVER P237 20DG/TN
11 MIRROR-POWER FOLDING/UNFOLDING P699 20LG/DG
12 DRIVER DOOR LOCK SWITCH MUX P697 22LG/VT
13 - -
14 PASSENGER MIRROR HORIZONTAL DRIVER P74 20TN/OR
15 DRIVER DOOR UNLOCK DRIVER P238 20TN/DG
16 CAN B BUS (+) D55 20WT/OR

Component Location - 53




Component Location - 56

Fig. 56:

Component Location - 60

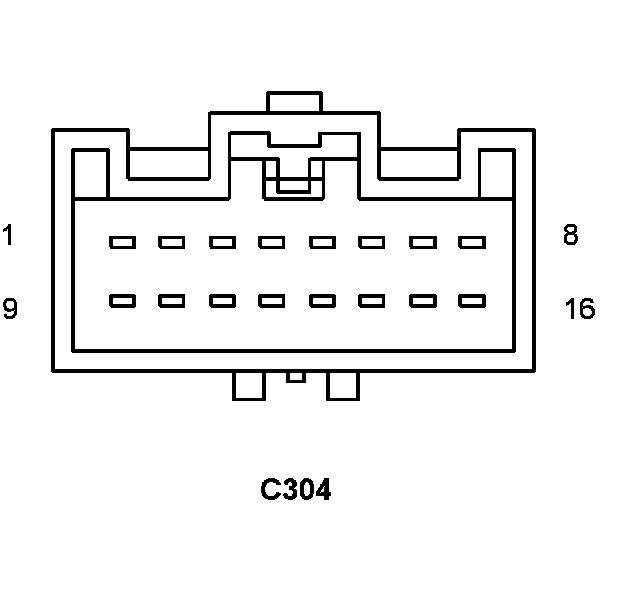

Connector:
Name : C304
Color :
# of pins : 16
Gender : MALE




Pin Description Circuit
1 LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
Pin Description Circuit
1 RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
2 DOOR LOCK DRIVER P33 20TN/DB
3 MIRROR COMMON DRIVER P76 20LG
3 MIRROR COMMON DRIVER P76 20TN
4 LEFT FRONT DOOR AJAR SWITCH SENSE G75 20VT
4 RIGHT FRONT DOOR AJAR SWITCH SENSE G74 20VT/WT
5 FOLDING MIRROR RETURN P110 20LG/WT
6 PASSENGER MIRROR VERTICAL DRIVER P72 20TN/GY
7 SECONDARY LOCK DRIVER P235 20LG/TN
8 CAN B BUS (-) D54 20WT
9 LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
9 RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
10 SECONDARY UNLOCK DRIVER P237 20DG/TN
11 MIRROR-POWER FOLDING/UNFOLDING P699 20LG/DG
12 DRIVER DOOR LOCK SWITCH MUX P697 22LG/VT
12 DRIVER DOOR LOCK SWITCH MUX P697 20LG/VT
13 - -
14 PASSENGER MIRROR HORIZONTAL DRIVER P74 20TN/OR
15 DRIVER DOOR UNLOCK DRIVER P238 20TN/DG
16 CAN B BUS (+) D55 20WT/OR

Component Location - 53




Component Location - 56

Fig. 56:

Component Location - 60
