C302

Component ID: 50
Component : C302

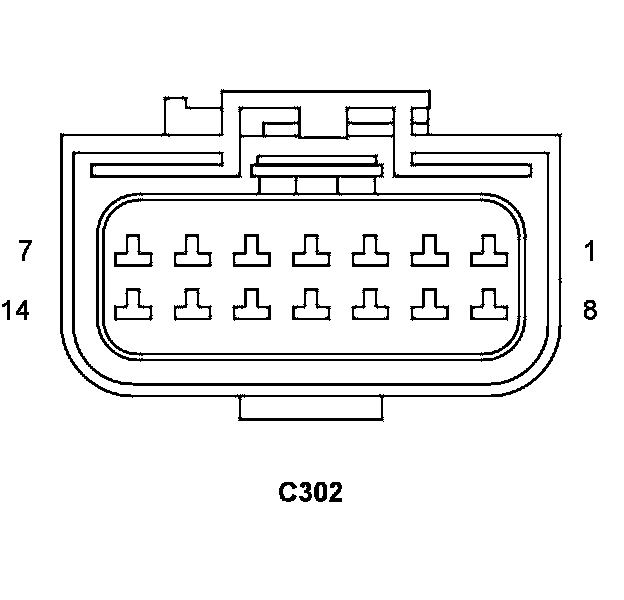

Connector:
Name : C302
Color :
# of pins : 14
Gender : FEMALE




Pin Description Circuit
1 FUSED B(+) A937 14RD
2 MASTER WINDOW SWITCH LEFT REAR (UP) Q411 14OR/WT
3 IGNITION SWITCH OUTPUT (RUN-ACC) F981 14PK
4 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/PK
5 FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT C16 20DB/GY
6 MASTER WINDOW SWITCH RIGHT REAR (UP) Q412 14OR/LG
7 - -
8 - -
9 MASTER WINDOW SWITCH RIGHT REAR (DOWN) Q612 14OR/DB
10 MASTER WINDOW SWITCH PASSENGER (UP) Q16 14OR/TN
11 FUSED B(+) (I.O.D.) A417 20RD/DB
12 MASTER WINDOW SWITCH PASSENGER (DOWN) Q26 14OR/GY
13 MASTER WINDOW SWITCH LEFT REAR (DOWN) Q611 14OR/GY
14 GROUND Z908 14BK

Component Location - 53




Component Location - 56

Fig. 56:

Component Location - 60

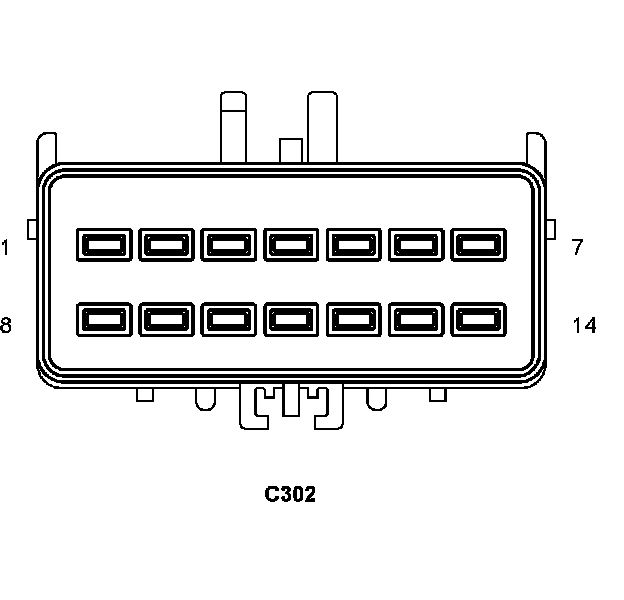

Connector:
Name : C302
Color :
# of pins : 14
Gender : MALE




Pin Description Circuit
1 FUSED B(+) A937 14RD
2 MASTER WINDOW SWITCH LEFT REAR (UP) Q411 14OR/WT
3 IGNITION SWITCH OUTPUT (RUN-ACC) F981 14PK
4 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/PK
4 WINDOW LOCK OUT SWITCH OUTPUT Q15 14OR/LB
5 FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT C16 20DB/GY
6 MASTER WINDOW SWITCH RIGHT REAR (UP) Q412 14OR/LG
7 - -
8 - -
9 MASTER WINDOW SWITCH RIGHT REAR (DOWN) Q612 14OR/DB
10 MASTER WINDOW SWITCH PASSENGER (UP) Q16 14OR/TN
11 FUSED B(+) (I.O.D.) A417 20RD/DB
12 MASTER WINDOW SWITCH PASSENGER (DOWN) Q26 14OR/VT
13 MASTER WINDOW SWITCH LEFT REAR (DOWN) Q611 14OR/GY
14 GROUND Z908 14BK

Component Location - 53




Component Location - 56

Fig. 56:

Component Location - 60
