C301

Component ID: 49
Component : C301

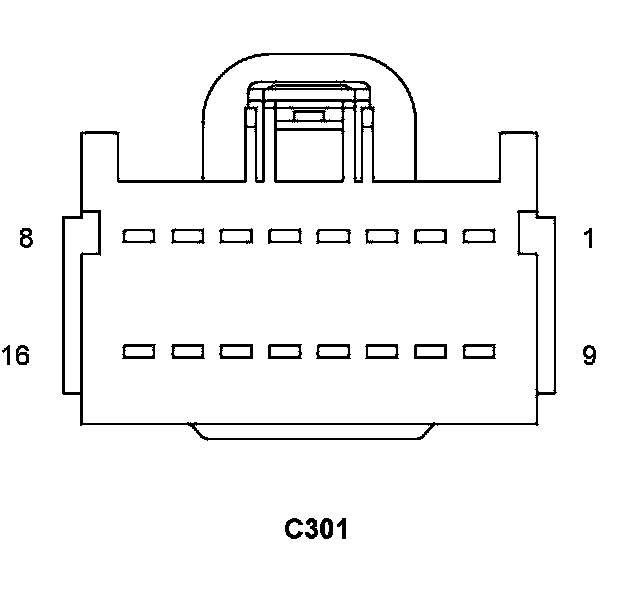

Connector:
Name : C301
Color :
# of pins : 16
Gender : FEMALE




Pin Description Circuit
1 LEFT FRONT DOOR SPEAKER (+) X202 18DG/VT
Pin Description Circuit
1 RIGHT FRONT DOOR SPEAKER (+) X201 18GY/VT
2 DOOR LOCK DRIVER P33 20TN/DB
3 MIRROR COMMON DRIVER P76 20LG
4 RIGHT FRONT DOOR AJAR SWITCH SENSE G74 22VT/WT
4 LEFT FRONT DOOR AJAR SWITCH SENSE G75 22VT
5 FOLDING MIRROR RETURN P110 20LG/WT
6 PASSENGER MIRROR VERTICAL DRIVER P72 20TN/GY
7 SECONDARY LOCK DRIVER P235 20LG/TN
8 CAN B BUS (-) D54 20WT
9 LEFT FRONT DOOR SPEAKER (-) X292 18DG/YL
9 RIGHT FRONT DOOR SPEAKER (-) X291 18GY/YL
10 SECONDARY UNLOCK DRIVER P237 20DG/TN
11 MIRROR-POWER FOLDING/UNFOLDING P699 20LG/DG
12 PASSENGER DOOR LOCK SWITCH MUX P696 22LG/WT
13 - -
14 PASSENGER MIRROR HORIZONTAL DRIVER P74 20TN/OR
15 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
16 CAN B BUS (+) D55 20WT/OR

Component Location - 55




Component Location - 54

Fig. 54:

Component Location - 60

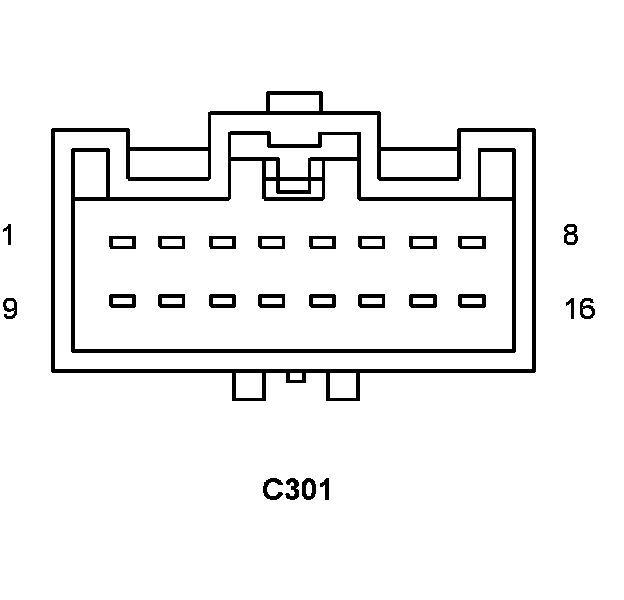

Connector:
Name : C301
Color :
# of pins : 16
Gender : MALE




Pin Description Circuit
1 RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
Pin Description Circuit
1 LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
2 DOOR LOCK DRIVER P33 20TN/DB
3 MIRROR COMMON DRIVER P76 20LG
4 RIGHT FRONT DOOR AJAR SWITCH SENSE G74 20VT/WT
4 LEFT FRONT DOOR AJAR SWITCH SENSE G75 20VT
5 FOLDING MIRROR RETURN P110 20LG/WT
6 PASSENGER MIRROR VERTICAL DRIVER P72 20TN/GY
7 SECONDARY LOCK DRIVER P235 20LG/TN
8 CAN B BUS (-) D54 20WT
9 RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
9 LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
10 SECONDARY UNLOCK DRIVER P237 20DG/TN
11 MIRROR-POWER FOLDING/UNFOLDING P699 20LG/DG
12 PASSENGER DOOR LOCK SWITCH MUX P696 22LG/WT
13 - -
14 PASSENGER MIRROR HORIZONTAL DRIVER P74 20TN/OR
15 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
16 CAN B BUS (+) D55 20WT/OR

Component Location - 55




Component Location - 54

Fig. 54:

Component Location - 60
