C300

Component ID: 48
Component : C300

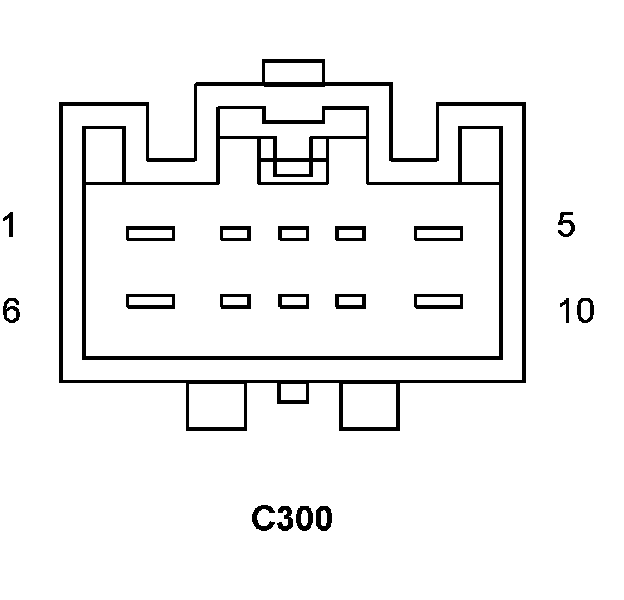

Connector:
Name : C300
Color :
# of pins : 10
Gender : FEMALE




Pin Description Circuit
1 FUSED B(+) A950 20RD/VT
2 - -
3 CAN B BUS (-) D54 20WT
4 - -
5 GROUND Z907 14BK
6 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/DB
7 - -
8 CAN B BUS (+) D55 20WT/OR
9 PANEL LAMPS DRIVER E12 20OR/GY
10 FUSED B(+) (I.O.D.) A419 18RD/PK

Component Location - 50




Component Location - 51

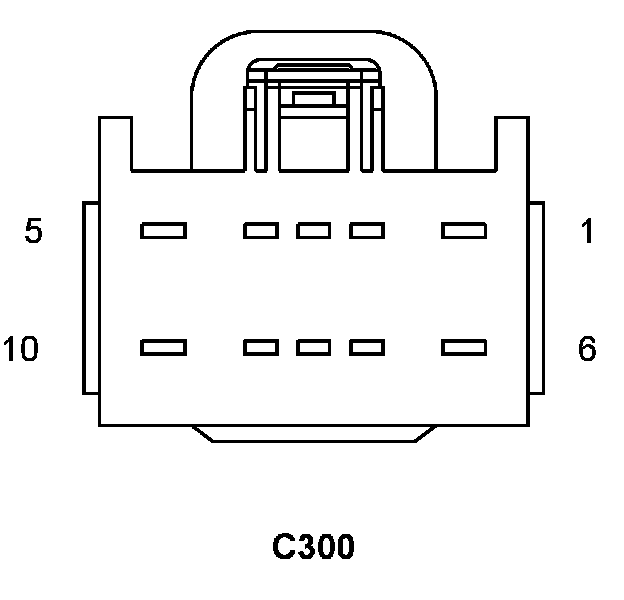

Connector:
Name : C300
Color :
# of pins : 10
Gender : MALE




Pin Description Circuit
1 FUSED B(+) A950 20RD/VT
2 - -
3 CAN B BUS (-) D54 20WT
4 - -
5 GROUND Z907 14BK
5 GROUND Z907 20BK
6 FUSED IGNITION SWITCH OUTPUT (RUN) F929 20PK/DB
7 - -
8 CAN B BUS (+) D55 20WT/OR
9 PANEL LAMPS DRIVER E12 20OR/GY
10 FUSED B(+) (I.O.D.) A419 18RD/PK

Component Location - 50




Component Location - 51
