C205

Component ID: 47
Component : C205

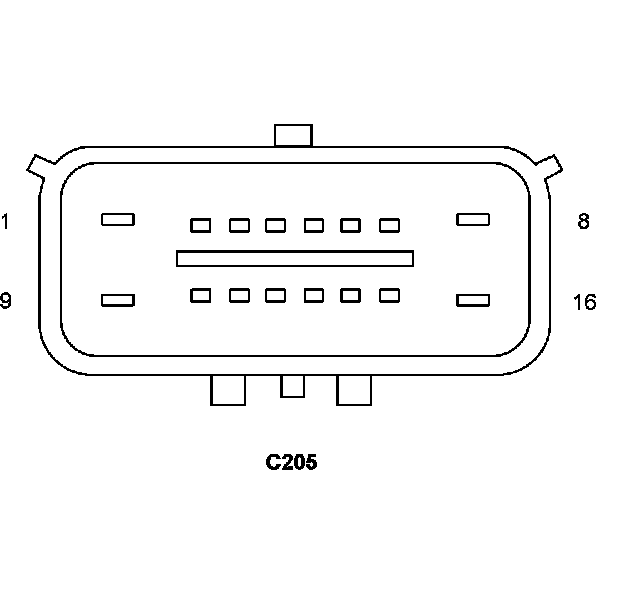

Connector:
Name : C205
Color :
# of pins : 16
Gender : FEMALE

Pin Description Circuit
1 CAN B BUS (+) D55 20WT/OR
2 RIGHT FRONT IMPACT SENSOR GROUND R82 20WT/LB
3 RIGHT FRONT IMPACT SENSOR SIGNAL R80 20VT/LB
4 DRIVER SQUIB 1 LINE 2 R43 18LG/BR
5 DRIVER SQUIB 1 LINE 1 R45 18LG/OR
6 PASSENGER SQUIB 1 LINE 1 R44 18LB/OR
7 PASSENGER SQUIB 1 LINE 2 R42 18LB/BR
8 - -
9 CAN B BUS (-) D54 20WT
10 DRIVER SQUIB 2 LINE 2 R61 18LG/VT
11 DRIVER SQUIB 2 LINE 1 R63 18LG/WT
12 PASSENGER SQUIB 2 LINE 1 R64 18LB/WT
13 PASSENGER SQUIB 2 LINE 2 R62 18LB/VT
14 LEFT FRONT IMPACT SENSOR GROUND R81 20LB/WT
15 LEFT FRONT IMPACT SENSOR SIGNAL R79 20LB/VT
16 - -

Component Location - 51

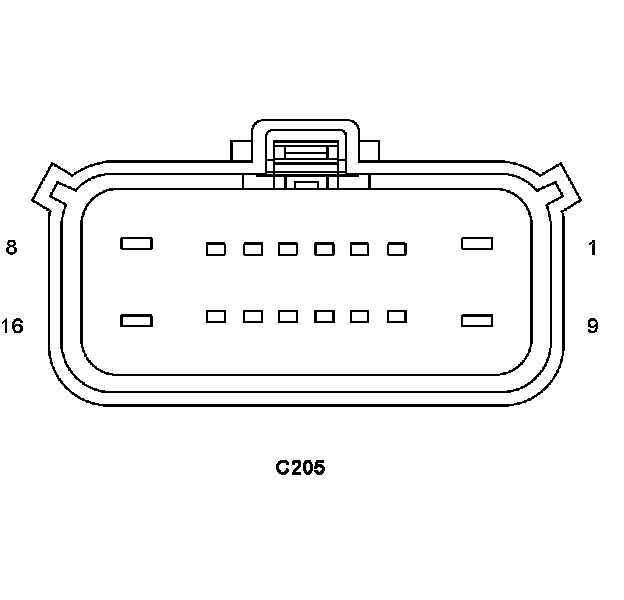

Connector:
Name : C205
Color :
# of pins : 16
Gender : MALE
