C204

Component ID: 46
Component : C204

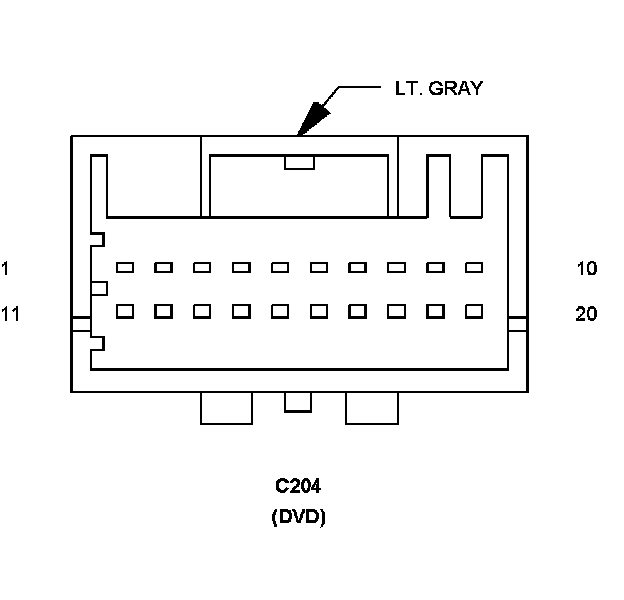

Connector:
Name : C204
Color : LT. GRAY
# of pins : 20
Qualifier : (DVD)
Gender : FEMALE




Pin Description Circuit
1 VIDEO SHIELD 1 X536 22
2 VIDEO COMMON 1 X535 22GY/OR
3 VIDEO SIGNAL 1 X534 22GY/LB
4 - -
5 AUDIO LEFT 3 X551 22DG/VT
6 AUDIO RETURN 3 X552 22GY/VT
7 AUDIO RIGHT 1 X538 22DG/WT
8 AUDIO LEFT 1 X539 22DG/TN
9 AUDIO RETURN 1 X540 22GY/TN
10 - -
11 - -
12 AUDIO RIGHT 2 X544 22DG/DB
13 AUDIO LEFT 2 X545 22DG/LB
14 AUDIO RETURN 2 X546 22GY/DG
15 - -
16 AUDIO RIGHT 3 X550 22DG/YL
17 - -
18 VIDEO SIGNAL 2 X541 22GY/LB
19 VIDEO COMMON 2 X542 22GY/OR
20 VIDEO SHIELD 2 X543 22

Component Location - 38

Fig. 38:

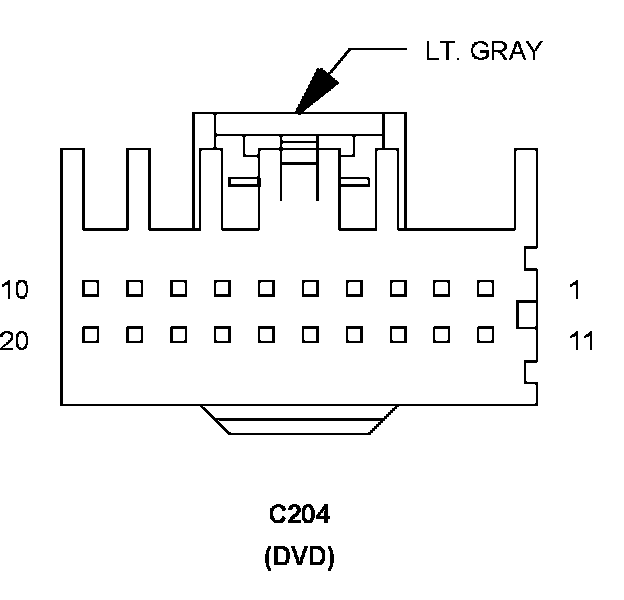

Connector:
Name : C204
Color : LT. GRAY
# of pins : 20
Qualifier : (DVD)
Gender : MALE




Pin Description Circuit
1 VIDEO SHIELD 1 X536 22DG/TN
2 VIDEO COMMON 1 X535 22GY/YL
3 VIDEO SIGNAL 1 X534 22GY/BR
4 - -
5 AUDIO LEFT 3 X551 20DG/VT
6 AUDIO RETURN 3 X552 20GY/VT
7 AUDIO RIGHT 1 X538 20DG/WT
8 AUDIO LEFT 1 X539 20DG/TN
9 AUDIO RETURN 1 X540 20GY/VT
10 - -
11 - -
12 AUDIO RIGHT 2 X544 20DG/DB
13 AUDIO LEFT 2 X545 20DG/LB
14 AUDIO RETURN 2 X546 20GY/DG
15 - -
16 AUDIO RIGHT 3 X550 20DG/YL
17 - -
18 VIDEO SIGNAL 2 X541 22GY/LB
19 VIDEO COMMON 2 X542 22GY/YL
20 VIDEO SHIELD 2 X543 22DG/BR

Component Location - 38

Fig. 38:
