C200
Component ID: 42
Component : C200

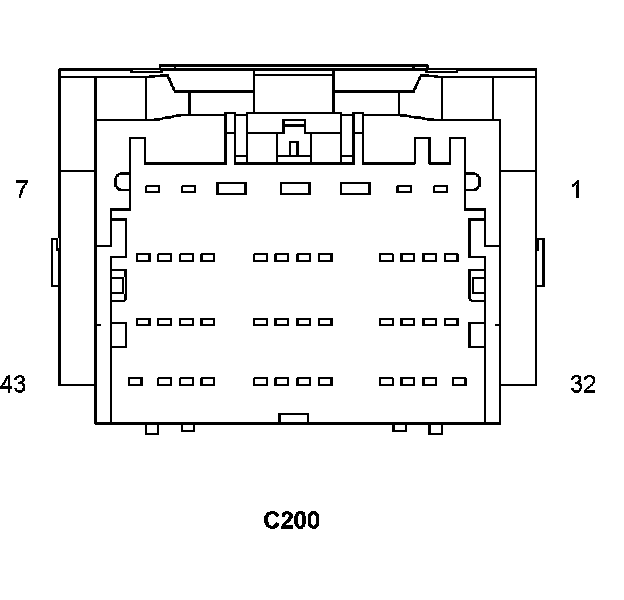

Connector:
Name : C200
Color :
# of pins : 43
Gender : FEMALE
Pin Description Circuit
1 PANEL LAMPS DRIVER E12 20OR/GY
2 IR SENSOR SIGNAL C83 20DB/LG
3 IGNITION SWITCH OUTPUT (RUN-START) F202 20PK/WT
4 BACKUP LAMP SWITCH OUTPUT L1 20WT/LG
5 AMPLIFIED ANTENNA FEED X62 18GY/OR
6 IR SENSOR RETURN C830 20DB/YL
7 COURTESY LAMPS DRIVER M24 20YL/WT
8 LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
8 LEFT FRONT SPEAKERS (+) X201 18GY/YL
9 LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
9 LEFT FRONT SPEAKERS (-) X291 18GY/YL
10 CAN C BUS (-) D64 20WT/LB
11 CAN C BUS (+) D65 20WT/LG
12 RIGHT REAR DOOR AJAR SWITCH SENSE G76 22VT/YL
13 RIGHT FRONT DOOR AJAR SWITCH SENSE G74 22VT/WT
14 LEFT FRONT DOOR AJAR SWITCH SENSE G75 22VT
15 LEFT REAR DOOR AJAR SWITCH SENSE G77 22VT/GY
16 COURTESY LAMPS DRIVER M25 20OR/LG
17 - -
18 LEFT REAR SPEAKER (+) X303 18DG/TN
19 LEFT REAR SPEAKER (-) X393 18DG/GY
20 BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID UNLOCK K321 22BR/YL
21 UGDO ENABLE CONTROL CIRCUIT G38 20GY
22 DRIVER DOOR UNLOCK DRIVER P238 20TN/DG
23 PASSENGER DOOR LOCK SWITCH MUX P696 22LG/WT
24 FUEL LEVEL SIGNAL 1 N4 20DB/WT
25 LIN BUS D506 22WT/DG
26 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
27 DRIVER SEAT BELT SWITCH SENSE R57 20LG/GY
28 DRIVER DOOR LOCK SWITCH MUX P697 22LG/VT
29 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
30 READING/RAIL LAMPS DRIVER M27 22YL/LB
31 DOOR LOCK DRIVER P33 20TN/DB
32 SECONDARY LOCK DRIVER P235 20LG/TN
33 - -
34 RIGHT REAR SPEAKER (+) X304 18DG/BR
35 RIGHT REAR SPEAKER (-) X394 18YL/GY
36 DECKLID RELEASE DRIVER P31 20TN/YL
37 DECKLID AJAR SWITCH SENSE G78 20VT/OR
38 PARK BRAKE SWITCH SENSE B25 18DG/WT
39 - -
40 RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
40 RIGHT FRONT SPEAKERS (+) X202 18DG/VT
41 RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
41 RIGHT FRONT SPEAKERS (-) X292 18DG/YL
42 - -
43 SECONDARY UNLOCK DRIVER P237 20DG/TN
Component Location - 35
Component Location - 36
Fig. 36:
Component Location - 38
Fig. 38:
Component Location - 40
Fig. 40:
Component Location - 42
Fig. 42:
Component Location - 45
Component Location - 53
Component Location - 54
Fig. 54:

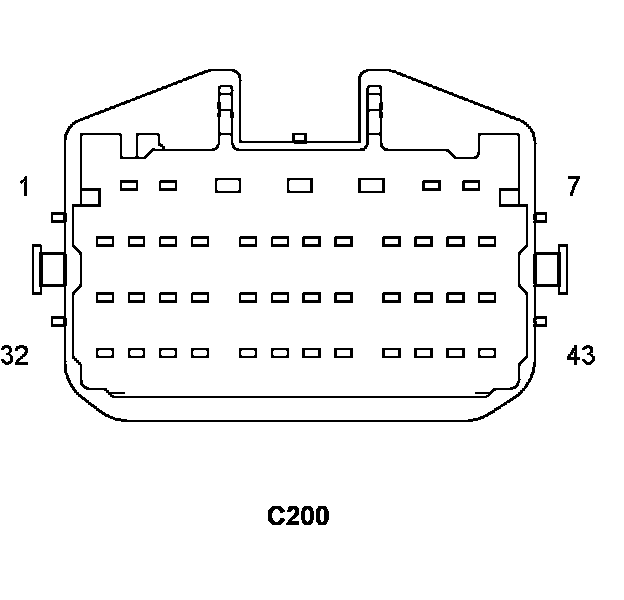

Connector:
Name : C200
Color :
# of pins : 43
Gender : MALE
Pin Description Circuit
1 PANEL LAMPS DRIVER E12 20OR/GY
2 IR SENSOR SIGNAL C83 20DB/LG
3 IGNITION SWITCH OUTPUT (RUN-START) F202 20PK/WT
4 BACKUP LAMP SWITCH OUTPUT L1 20WT/LG
5 AMPLIFIED ANTENNA FEED X62 18GY/OR
6 IR SENSOR RETURN C830 20DB/YL
7 STOP LAMP SWITCH OUTPUT L53 22DG/WT
8 LEFT FRONT DOOR SPEAKER (+) X201 18GY/VT
8 LEFT FRONT SPEAKERS (+) X201 18GY/VT
9 LEFT FRONT DOOR SPEAKER (-) X291 18GY/YL
9 LEFT FRONT SPEAKERS (-) X291 18GY/YL
10 CAN C BUS (-) D64 20WT/LB
11 CAN C BUS (+) D65 20WT/LG
12 RIGHT REAR DOOR AJAR SWITCH SENSE G76 22VT/YL
13 RIGHT FRONT DOOR AJAR SWITCH SENSE G74 22VT/WT
14 LEFT FRONT DOOR AJAR SWITCH SENSE G75 22VT
15 LEFT REAR DOOR AJAR SWITCH SENSE G77 22VT/GY
16 COURTESY LAMPS DRIVER M25 20OR/LG
17 FUEL LEVEL SIGNAL 2 N5 20DB/OR
18 LEFT REAR SPEAKER (+) X303 18DG/TN
19 LEFT REAR SPEAKER (-) X393 18DG/GY
20 BRAKE TRANSMISSION SHIFT INTERLOCK SOLENOID UNLOCK K321 22BR/YL
21 UGDO ENABLE CONTROL CIRCUIT G38 22GY
22 DRIVER DOOR UNLOCK DRIVER P238 20TN/DG
23 PASSENGER DOOR LOCK SWITCH MUX P696 22LG/WT
24 FUEL LEVEL SIGNAL 1 N4 20DB/WT
25 LIN BUS D506 20WT/DG
26 COM-LIN TIRE PRESSURE MONITOR LAN D508 20WT/GY
27 DRIVER SEAT BELT SWITCH SENSE R57 20LG/GY
28 DRIVER DOOR LOCK SWITCH MUX P697 22LG/VT
29 PASSENGER DOOR UNLOCK DRIVER P240 20TN/WT
30 READING/RAIL LAMPS DRIVER M27 22YL/LB
31 DOOR LOCK DRIVER P33 20TN/DB
32 SECONDARY LOCK DRIVER P235 20LG/TN
33 - -
34 RIGHT REAR SPEAKER (+) X304 18DG/BR
35 RIGHT REAR SPEAKER (-) X394 18YL/GY
36 DECKLID RELEASE DRIVER P31 20TN/YL
37 DECKLID AJAR SWITCH SENSE G78 22VT/OR
38 PARK BRAKE SWITCH SENSE B25 22DG/WT
39 LIN BUS D122 22WT/LG
40 RIGHT FRONT DOOR SPEAKER (+) X202 18DG/VT
40 RIGHT FRONT SPEAKERS (+) X202 18DG/VT
41 RIGHT FRONT DOOR SPEAKER (-) X292 18DG/YL
41 RIGHT FRONT SPEAKERS (-) X292 18GY/LG
42 - -
43 SECONDARY UNLOCK DRIVER P237 20DG/TN
Component Location - 35
Component Location - 36
Fig. 36:
Component Location - 38
Fig. 38:
Component Location - 40
Fig. 40:
Component Location - 42
Fig. 42:
Component Location - 45
Component Location - 53
Component Location - 54
Fig. 54:
