C117

Component ID: 41
Component : C117

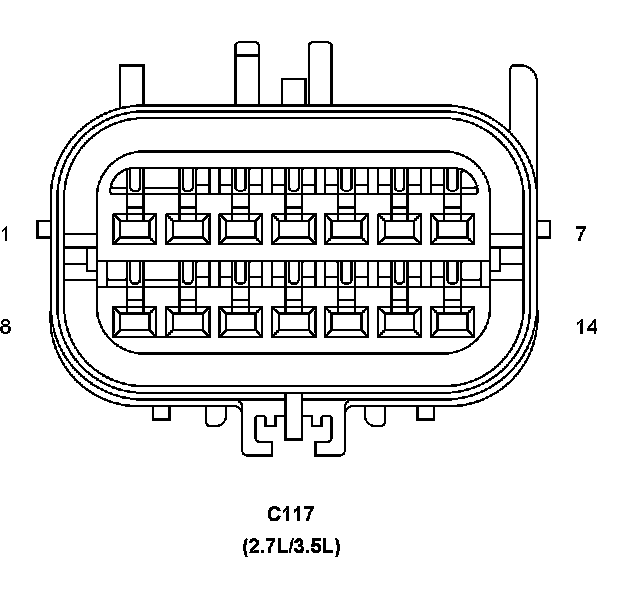

Connector:
Name : C117
Color :
# of pins : 14
Qualifier : (2.7L/3.5L)
Gender : FEMALE

Pin Description Circuit
1 O2 1/2 HEATER CONTROL K299 16BR/WT
2 O2 2/2 HEATER CONTROL K399 16BR/GY
3 O2 RETURN (DOWN) K904 20DB/DG
4 O2 2/2 SIGNAL K243 20BR
5 O2 1/2 SIGNAL K141 20DB/YL
6 GROUND Z902 20BK
7 GROUND Z902 20BK
8 GROUND Z902 20BK
9 GROUND Z902 20BK
10 GROUND Z902 16BK
11 GROUND Z902 16BK
12 GROUND Z902 16BK
13 GROUND Z902 16BK
14 - -

Connector:
Name : C117
Color :
# of pins : 14
Qualifier : (2.7L/3.5L)
Gender : MALE
