C116
Component ID: 40
Component : C116
Connector:

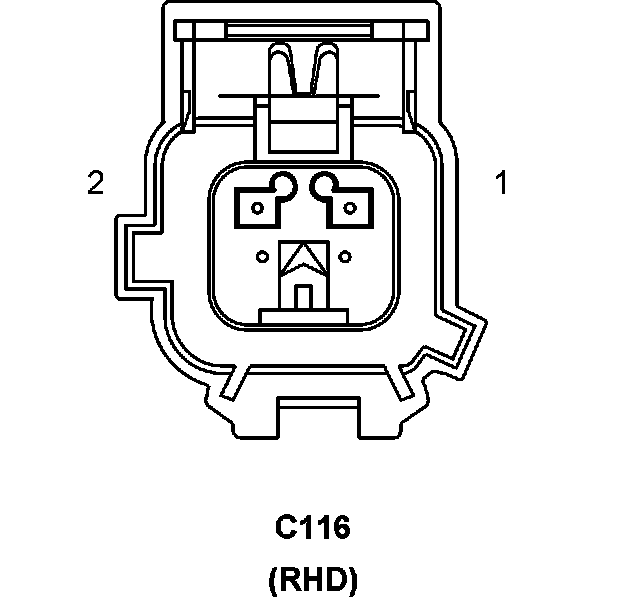

Name : C116
Color :
# of pins : 2
Qualifier : (RHD)
Gender : FEMALE
Pin Description Circuit
1 BRAKE FLUID LEVEL SIGNAL B20 20DG/OR
2 GROUND Z902 20BK
Component Location - 8
Fig. 8:
Connector:
Name : C116
Color :
# of pins : 2
Qualifier : (RHD)
Gender : MALE
Pin Description Circuit
1 BRAKE FLUID LEVEL SIGNAL B20 20DG/OR
2 GROUND Z902 20BK
Component Location - 8
Fig. 8:
