C115

Component ID: 39

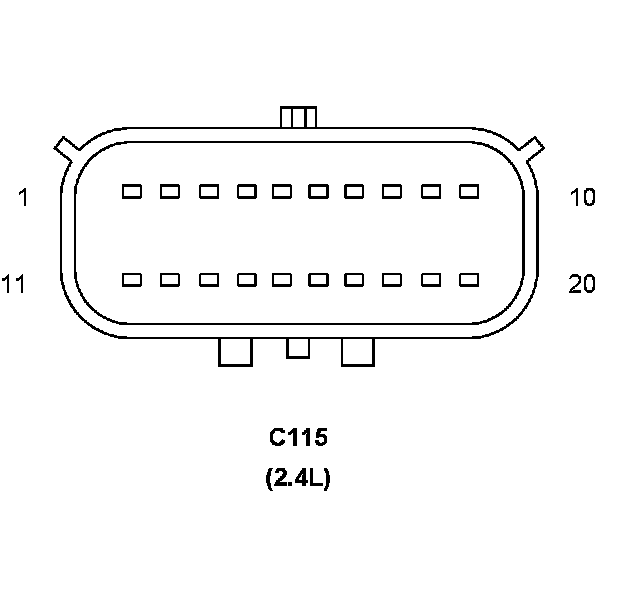

Component : C115

Connector:
Name : C115
Color :
# of pins : 20
Qualifier : (2.4L)
Gender : FEMALE




Pin Description Circuit
1 5 VOLT SUPPLY T854 20DG
2 TRS T1 SIGNAL T1 20DG/LB
3 TRS T3 SIGNAL T3 20DG/DB
4 OD PRESSURE SIGNAL T9 20DG/TN
5 SENSOR GROUND T13 20DG/VT
6 OUTPUT SPEED SIGNAL T14 20DG/BR
7 2-4 CONTROL T19 18YL/RD
8 L/R CONTROL T20 20DG/WT
9 LP VFS SIGNAL T38 20YL/LG
10 TRS T41 SIGNAL T41 20YL/DB
11 TRS T42 SIGNAL T42 20DG/BK
12 2-4 PRESSURE SIGNAL T47 20YL/GY
13 L/R PRESSURE SIGNAL T50 20YL/LB
14 INPUT SPEED SIGNAL T52 20DG/OR
15 LP VFS CONTROL T118 18DG/LG
16 TRANSMISSION TEMPERATURE SIGNAL T54 20DG/GY
17 UD CONTROL T59 18YL/BK
18 OD CONTROL T60 18YL/WT
19 SENSOR GROUND T853 20YL/GY
20 TRANSMISSION CONTROL OUTPUT T16 16YL/OR

Component Location - 28

Fig. 28:

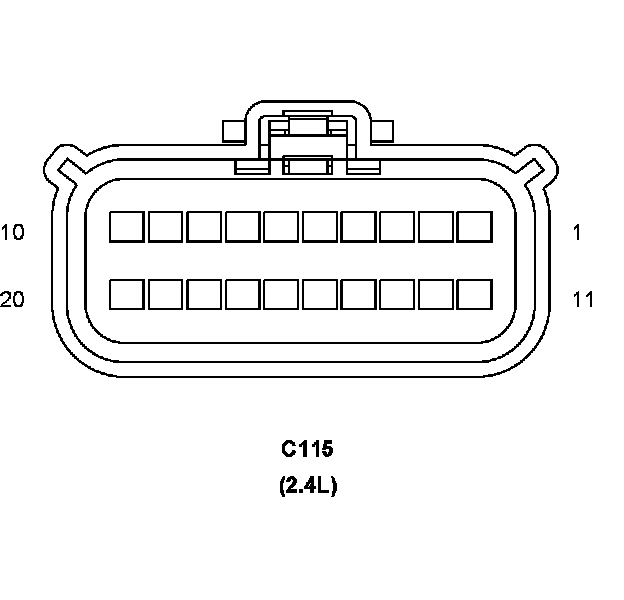

Connector:
Name : C115
Color :
# of pins : 20
Qualifier : (2.4L)
Gender : MALE




Pin Description Circuit
1 5 VOLT SUPPLY T854 20DG
2 TRS T1 SIGNAL T1 20DG/LB
3 TRS T3 SIGNAL T3 20DG/DB
4 OD PRESSURE SIGNAL T9 20DG/TN
5 SENSOR GROUND T13 20DG/VT
6 OUTPUT SPEED SIGNAL T14 20DG/BR
7 2-4 CONTROL T19 18YL/DB
8 L/R CONTROL T20 18DG/WT
9 LP VFS SIGNAL T38 18YL/BR
10 TRS T41 SIGNAL T41 20YL/DB
11 TRS T42 SIGNAL T42 20DG/YL
12 2-4 PRESSURE SIGNAL T47 20YL/DG
13 L/R PRESSURE SIGNAL T50 20YL/TN
14 INPUT SPEED SIGNAL T52 20DG/OR
15 LP VFS CONTROL T118 18DG
16 TRANSMISSION TEMPERATURE SIGNAL T54 20DG/OR
17 UD CONTROL T59 18YL/LB
18 OD CONTROL T60 18YL/GY
19 SENSOR GROUND T853 20YL/GY
20 TRANSMISSION CONTROL OUTPUT T16 16YL/OR

Component Location - 28

Fig. 28:
