C113

Component ID: 37
Component : C113

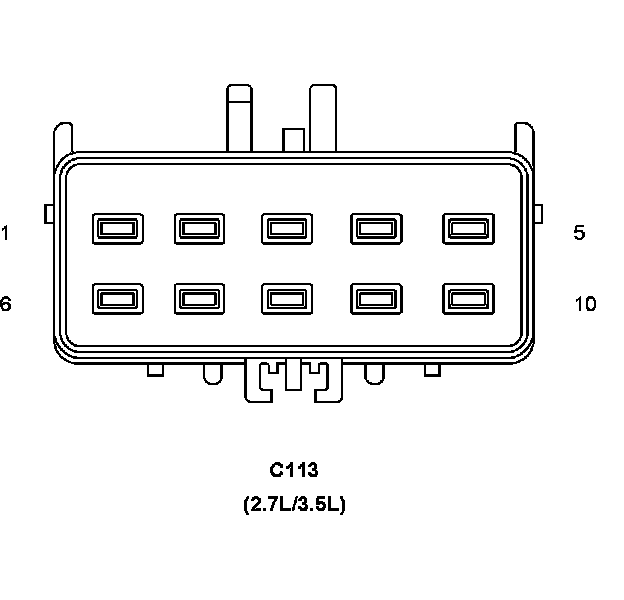

Connector:
Name : C113
Color :
# of pins : 10
Qualifier : (2.7L/3.5L)
Gender : FEMALE

Pin Description Circuit
1 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
2 - -
3 - -
4 5 VOLT SUPPLY F856 20YL/PK
5 SENSOR GROUND K900 20DB/LB
6 TRANSMISSION CONTROL T15 20YL/BR
7 - -
8 GROUND Z902 16BK
9 GROUND Z902 16BK
10 GROUND Z902 16BK

Component Location - 20

Fig. 20:

Component Location - 24

Fig. 24:

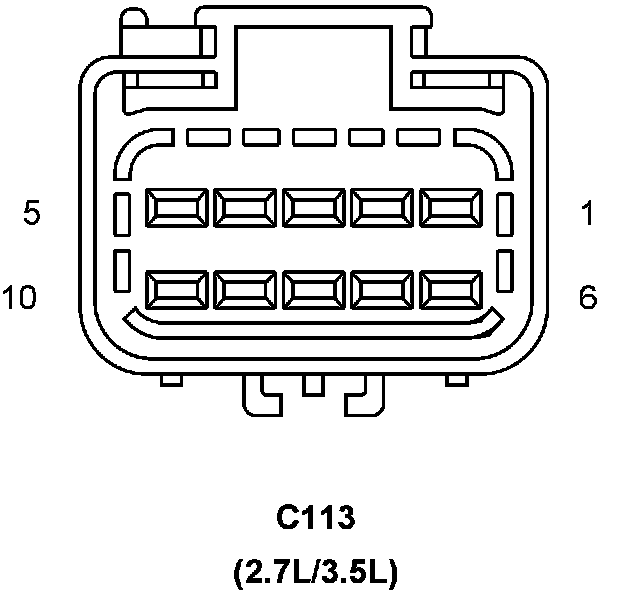

Connector:
Name : C113
Color :
# of pins : 10
Qualifier : (2.7L/3.5L)
Gender : MALE

Fig. 20:

Component Location - 24
