C108

Component ID: 33
Component : C108

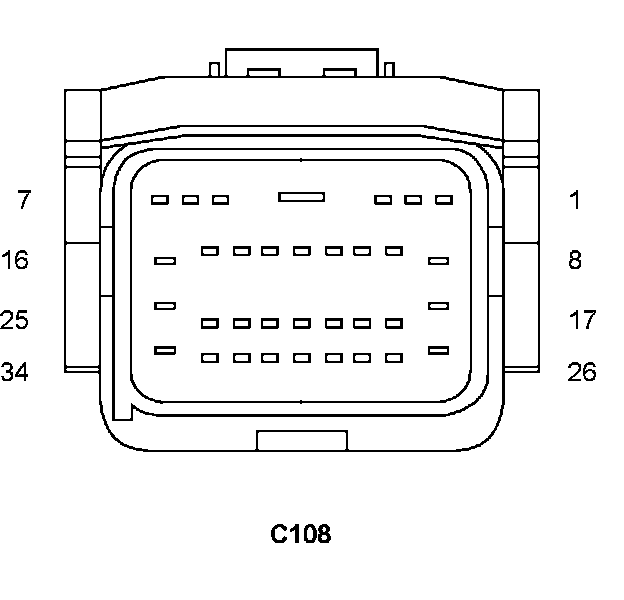

Connector:
Name : C108
Color :
# of pins : 34
Gender : FEMALE

Pin Description Circuit
1 HEADLAMP SWITCH OUTPUT L7 20WT/YL
2 RIGHT TURN SIGNAL CONTROL L60 20WT/TN
3 LEFT TURN SIGNAL CONTROL L61 20WT/LG
4 - -
5 LEFT FRONT IMPACT SENSOR SIGNAL R79 20LB/VT
6 LEFT FRONT IMPACT SENSOR GROUND R81 20LB/WT
7 HOOD AJAR SWITCH SENSE G70 20VT/LB
8 - -
9 FRONT FOG LAMP CONTROL OUTPUT L89 18WT/YL
10 FRONT FOG LAMP CONTROL OUTPUT L90 18WT/OR
11 FRONT WASHER PUMP MOTOR CONTROL W10 20BR
12 RIGHT FRONT IMPACT SENSOR SIGNAL R80 20VT/LB
13 RIGHT FRONT IMPACT SENSOR GROUND R82 20WT/LB
14 HORN CONTROL OUTPUT X21 18GY/YL
15 HORN CONTROL OUTPUT X22 18GY/LB
16 - -
17 - -
18 LEFT LOW BEAM OUTPUT L43 20WT/DB
19 RIGHT LOW BEAM OUTPUT L44 20WT/TN
20 AAT SIGNAL G31 20VT/LG
21 AAT RETURN G931 20VT/BR
22 HEADLAMP WASHER RELAY CONTROL W24 20BR/OR
23 HEADLAMP SWITCH OUTPUT L70 20WT/GY
24 FUSED IGNITION SWITCH OUTPUT (RUN) F936 20PK/YL
25 FUSED B(+) A937 14RD
26 - -
27 LEFT HIGH BEAM OUTPUT L33 20WT/LG
28 RIGHT HIGH BEAM OUTPUT L34 20WT/LB
29 - -
30 - -
31 REAR WASHER PUMP MOTOR CONTROL W20 20BR/YL
32 LEFT HEADLAMP LEVEL SENSOR SIGNAL L131 20WT/LG
33 RIGHT HEADLAMP LEVEL SENSOR SIGNAL L132 20LG/WT
34 - -

Component Location - 4

Component Location - 12

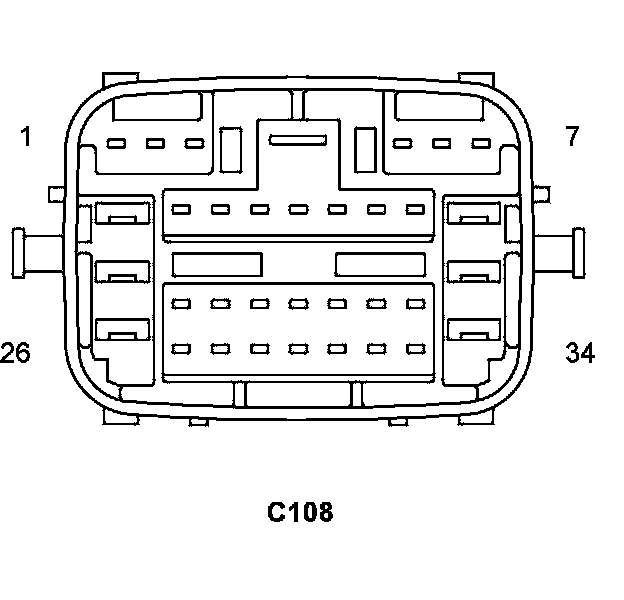

Connector:
Name : C108
Color :
# of pins : 34
Gender : MALE

Component Location - 12
