C105

Component ID: 31
Component : C105

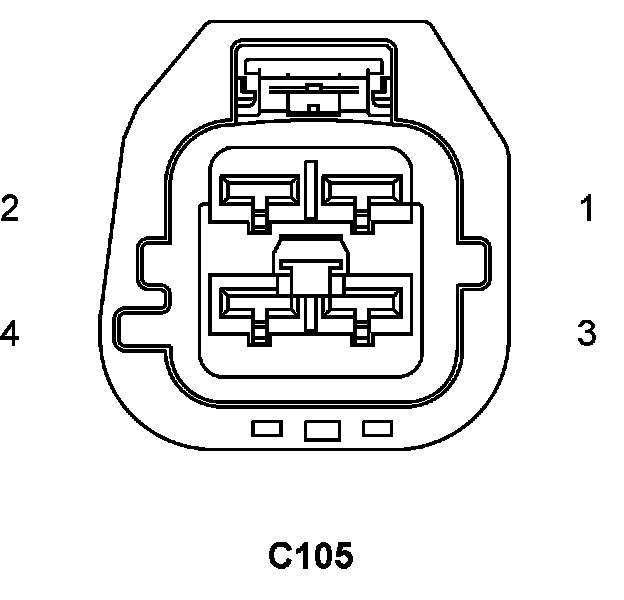

Connector:
Name : C105
Color :
# of pins : 4
Gender : FEMALE

Pin Description Circuit
1 LOW/HIGH RAD FAN RELAY OUTPUT N23 10DB
2 RAD FAN RELAY OUTPUT N24 10DG
3 GROUND Z901 16BK
4 SERIES/PARALLEL RAD FAN RELAY FEED N210 10DB/DG

Component Location - 4

Component Location - 12

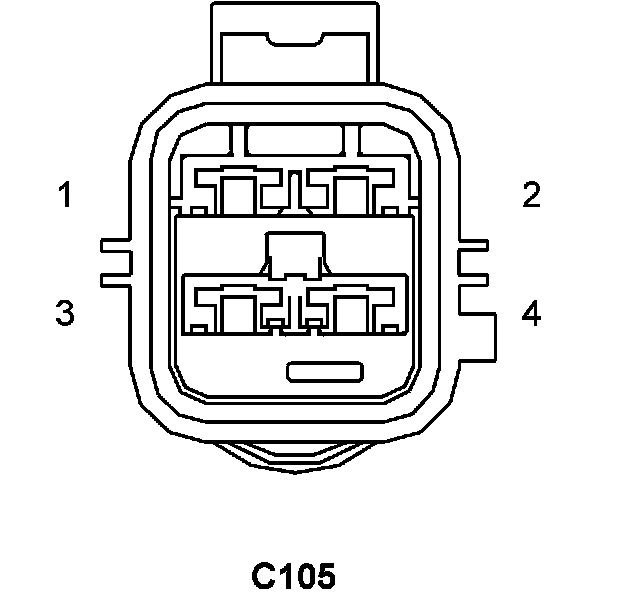

Connector:
Name : C105
Color :
# of pins : 4
Gender : MALE

Component Location - 12
