C104

Component ID: 30
Component : C104

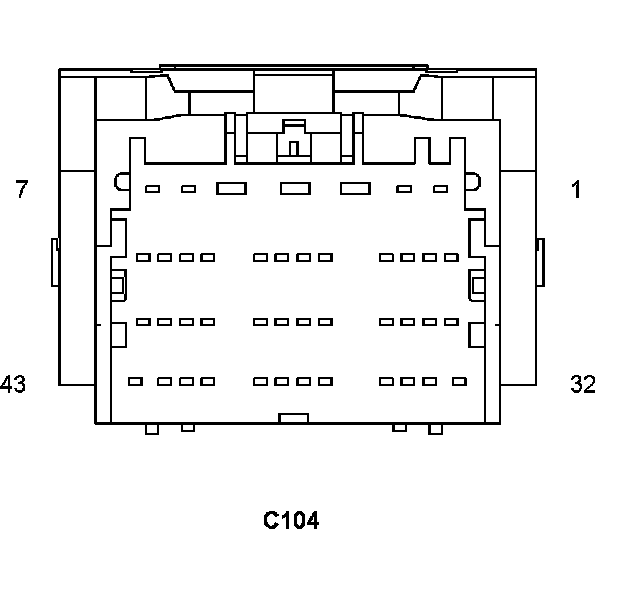

Connector:
Name : C104
Color :
# of pins : 43
Gender : FEMALE




Pin Description Circuit
1 FUSED B(+) A927 16RD/WT
2 - -
3 REAR WINDOW DEFOGGER CONTROL OUTPUT C515 12LB/OR
4 - -
5 FUSED B(+) A929 12RD
6 FUSED B(+) (I.O.D.) A419 18RD/PK
7 FUEL PUMP CONTROL OUTPUT N1 16DB/OR
8 FUSED IGNITION SWITCH OUTPUT (RUN) F937 18PK/YL
9 RIGHT REAR TURN SIGNAL CONTROL L62 20WT/YL
10 FUSED B(+) (I.O.D.) A415 20RD/LB
11 AUTOSTICK UPSHIFT SIGNAL T5 20DG/YL
12 CAN B BUS (-) D54 20WT
13 CAN B BUS (+) D55 20WT/OR
14 DYNAMICS SENSOR LOW DATA LINK D464 20WT/YL
15 DYNAMICS SENSOR HIGH DATA LINK D465 20WT/DB
16 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
17 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/DG
18 LEFT REAR TURN SIGNAL CONTROL L63 20WT/DG
19 FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT C16 20DB/GY
20 FUSED B(+) A924 22RD
21 FUSED B(+) (I.O.D.) A417 20RD/DB
22 BRAKE SIGNAL 1 B15 20DG/WT
23 DYNAMICS SENSOR SUPPLY G4 20VT/LB
24 RIGHT REAR WHEEL SPEED SENSOR SIGNAL B1 20YL/DB
25 RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B2 20YL
26 LEFT REAR WHEEL SPEED SENSOR SIGNAL B3 20LG/DB
27 LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B4 20LG
28 DYNAMICS SENSOR GROUND G94 20VT/DB
29 BRAKE SIGNAL 2 B16 20LB/DG
30 BACKUP LAMP SWITCH OUTPUT L1 20WT/LG
31 STOP LAMP SWITCH OUTPUT L53 20DG/WT
32 FUSED B(+) A937 14RD
33 STOP LAMP CONTROL OUTPUT L55 20WT/OR
34 ESM SIGNAL K107 20VT/WT
35 FUSED IGNITION SWITCH OUTPUT (RUN) F100 20PK/VT
36 APP SIGNAL 1 K23 20BR/WT
37 APP SENSOR GROUND 1 K167 20BR/YL
38 APP SIGNAL 2 K29 20WT/BR
39 APP SENSOR GROUND 2 K400 20BR/VT
40 FUSED IGNITION SWITCH OUTPUT (RUN-START) F200 22PK/LB
41 - -
42 PARK LAMP CONTROL OUTPUT L217 20WT/VT
43 IGNITION SWITCH OUTPUT (RUN-ACC) F981 14PK

Component Location - 53

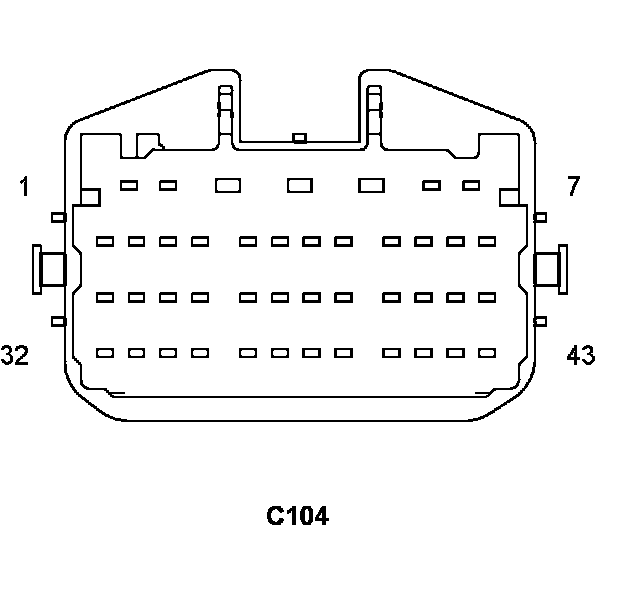

Connector:
Name : C104
Color :
# of pins : 43
Gender : MALE




Pin Description Circuit
1 FUSED B(+) A927 16RD/WT
2 - -
3 REAR WINDOW DEFOGGER CONTROL OUTPUT C515 12LB/OR
4 - -
5 FUSED B(+) A929 12RD
6 FUSED B(+) (I.O.D.) A419 18RD/PK
7 FUEL PUMP CONTROL OUTPUT N1 16DB/OR
8 FUSED IGNITION SWITCH OUTPUT (RUN) F937 18PK/YL
9 RIGHT REAR TURN SIGNAL CONTROL L62 20WT/YL
10 - -
11 AUTOSTICK UPSHIFT SIGNAL T5 20DG/YL
12 CAN B BUS (-) D54 20WT
13 CAN B BUS (+) D55 20WT/OR
14 DYNAMICS SENSOR LOW DATA LINK D464 20WT/YL
15 DYNAMICS SENSOR HIGH DATA LINK D465 20WT/DB
16 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
17 FUSED IGNITION SWITCH OUTPUT (RUN-ACC) F996 20PK/DG
18 LEFT REAR TURN SIGNAL CONTROL L63 20WT/DG
19 FUSED REAR WINDOW DEFOGGER CONTROL OUTPUT C16 20DB/GY
20 FUSED B(+) A924 22RD
21 FUSED B(+) (I.O.D.) A417 20RD/DB
22 BRAKE SIGNAL 1 B15 20DG/WT
23 DYNAMICS SENSOR SUPPLY G4 20VT/LB
24 RIGHT REAR WHEEL SPEED SENSOR SIGNAL B1 20YL/DB
25 RIGHT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B2 20YL
26 LEFT REAR WHEEL SPEED SENSOR SIGNAL B3 20LG/DB
27 LEFT REAR WHEEL SPEED SENSOR 12 VOLT SUPPLY B4 20LG
28 DYNAMICS SENSOR GROUND G94 20VT/DB
29 BRAKE SIGNAL 2 B16 20LB/DG
30 BACKUP LAMP SWITCH OUTPUT L1 20WT/LG
31 STOP LAMP SWITCH OUTPUT L53 20DG/WT
32 FUSED B(+) A937 14RD
33 STOP LAMP CONTROL OUTPUT L55 20WT/OR
34 ESM SIGNAL K107 20VT/WT
35 FUSED IGNITION SWITCH OUTPUT (RUN) F100 20PK/VT
36 APP SIGNAL 1 K23 20BR/WT
37 APP SENSOR GROUND 1 K167 20BR/YL
38 APP SIGNAL 2 K29 20WT/BR
39 APP SENSOR GROUND 2 K400 20BR/VT
40 FUSED IGNITION SWITCH OUTPUT (RUN-START) F200 20PK/LB
41 - -
42 PARK LAMP CONTROL OUTPUT L217 20WT/VT
43 IGNITION SWITCH OUTPUT (RUN-ACC) F981 14PK

Component Location - 53
