C103
Component ID: 29
Component : C103
Connector:
Name : C103
Color :
# of pins : 20
Qualifier : (2.0L/2.4L/DIESEL)
Gender : FEMALE
Pin Description Circuit
1 GEN SENSE A804 20RD/GY
Pin Description Circuit
1 GLOW PLUG 1 CONTROL A202 16RD/WT
2 O2 1/2 SIGNAL K141 20DB/YL
3 5 VOLT SUPPLY F856 20YL/PK
3 EOP SIGNAL G6 20VT/GY
4 FUSED ASD/MAIN RELAY OUTPUT F344 20BR/DB
4 CHARGE INDICATOR SIGNAL G329 20VT/OR
5 O2 1/2 HEATER CONTROL K299 20BR/WT
5 EGR COOLER BYPASS CONTROL K53 20DB/LG
6 O2 1/2 RETURN K904 20DB/DG
6 GEN OUTPUT SIGNAL K92 16BR
7 IGNITION SWITCH OUTPUT (UNLOCK-RUN-START) F901 20PK/RD
7 BOOST PRESSURE CONTROL K137 20DB/OR
8 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL
8 S/C SIGNAL 1 V71 20VT/OR
9 - -
10 TRANSMISSION CONTROL T15 20YL/BR
10 GLOW PLUG 2 CONTROL A203 16RD
11 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
11 GLOW PLUG 3 CONTROL A204 16RD/YL
12 STARTER CONTROL OUTPUT T750 16YL/VT
13 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL
14 AUTOSTICK UPSHIFT SIGNAL T5 20DG/YL
14 GROUND Z902 16BK
15 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
16 TRS T41 SIGNAL T41 20YL/DB
16 STARTER CONTROL OUTPUT T750 16YL/VT
17 GROUND Z902 18BK
17 FUEL PUMP CONTROL OUTPUT N1 20DB/OR
18 GROUND Z902 20BK
18 BACKUP LAMP SWITCH SIGNAL T22 20YL/VT
19 BACKUP LAMP SWITCH SIGNAL T22 20YL/VT
20 GROUND Z902 20BK
20 GLOW PLUG 4 CONTROL A208 16RD/OR
Component Location - 16

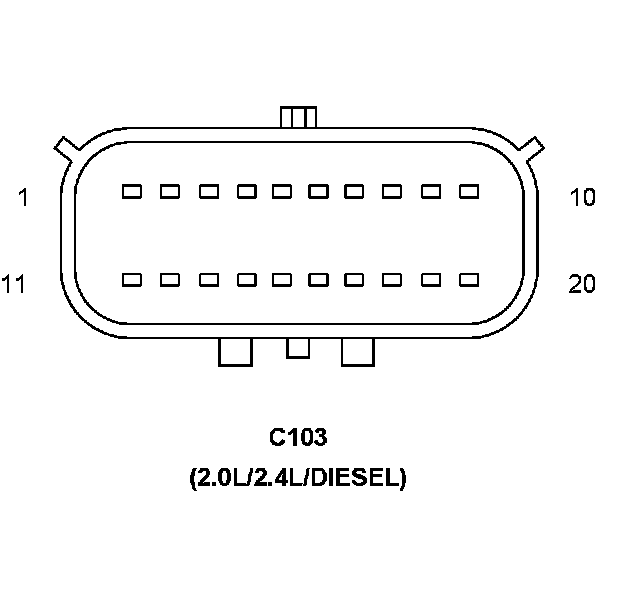

Fig. 16:
Component Location - 28

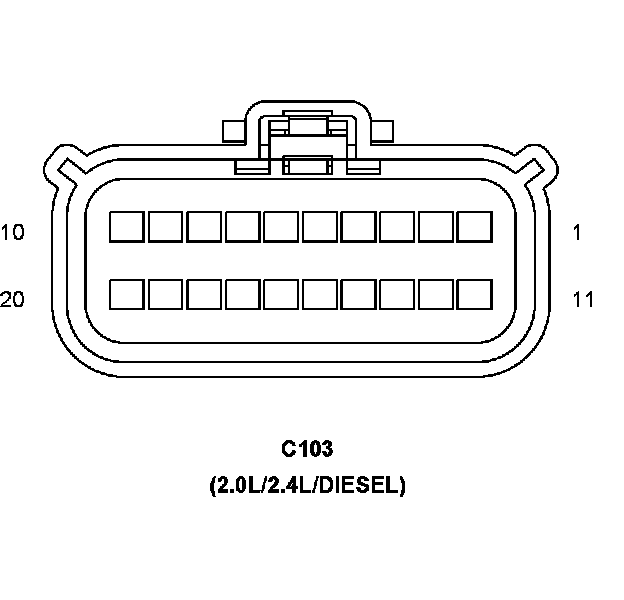

Fig. 28:
Component Location - 32
Fig. 32:
Connector:
Name : C103
Color :
# of pins : 20
Qualifier : (2.0L/2.4L/DIESEL)
Gender : MALE
Pin Description Circuit
1 GEN SENSE A804 20RD/GY
Pin Description Circuit
1 GLOW PLUG 1 CONTROL A202 16RD/WT
2 O2 1/2 SIGNAL K141 20DB/YL
3 5 VOLT SUPPLY F856 20YL/PK
3 EOP SIGNAL G6 20VT/GY
4 FUSED ASD/MAIN RELAY OUTPUT F344 20BR/DB
4 CHARGE INDICATOR SIGNAL G329 20VT/OR
5 O2 1/2 HEATER CONTROL K299 20BR/WT
5 EGR COOLER BYPASS CONTROL K53 20DB/LG
6 O2 1/2 RETURN K904 20DB/DG
6 GEN OUTPUT SIGNAL K92 20BR
7 IGNITION SWITCH OUTPUT (UNLOCK-RUN-START) F901 20PK/RD
7 BOOST PRESSURE CONTROL K137 20DB/OR
8 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL
8 S/C SIGNAL 1 V71 20VT/OR
9 - -
10 TRANSMISSION CONTROL T15 20YL/BR
10 GLOW PLUG 2 CONTROL A203 16RD
11 TRANSMISSION CONTROL OUTPUT T16 16YL/OR
11 GLOW PLUG 3 CONTROL A204 16RD/YL
12 STARTER CONTROL OUTPUT T750 16YL/VT
13 FUSED ASD/MAIN RELAY OUTPUT F343 20BR/YL
14 AUTOSTICK UPSHIFT SIGNAL T5 20DG/YL
14 GROUND Z902 16BK
15 AUTOSTICK DOWNSHIFT SIGNAL T44 20YL/DG
16 CLUTCH INTERLOCK SIGNAL T41 20YL/DB
16 TRS T41 SIGNAL T41 20YL/DB
16 STARTER CONTROL OUTPUT T750 16YL/VT
17 GROUND Z902 16BK
17 FUEL PUMP CONTROL OUTPUT N1 20DB/OR
18 GROUND Z902 20BK
18 BACKUP LAMP SWITCH SIGNAL T22 20YL/VT
19 BACKUP LAMP SWITCH SIGNAL T22 20YL/VT
20 GROUND Z902 20BK
20 GLOW PLUG 4 CONTROL A208 16RD/OR
Component Location - 16
Fig. 16:
Component Location - 28
Fig. 28:
Component Location - 32
Fig. 32:
